Product Description

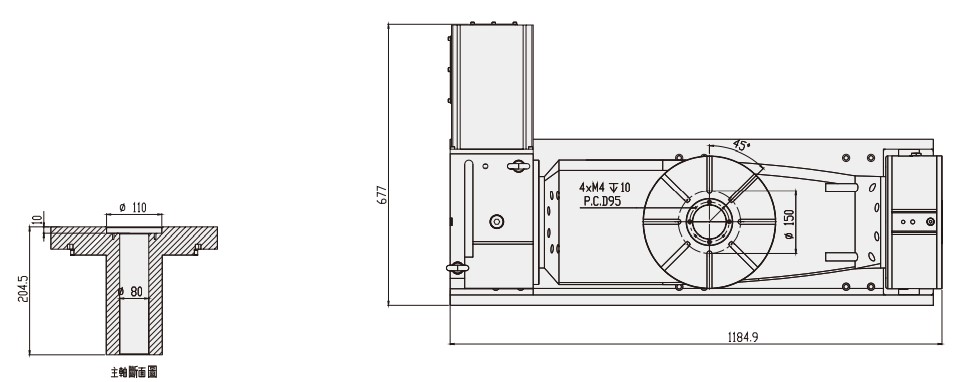

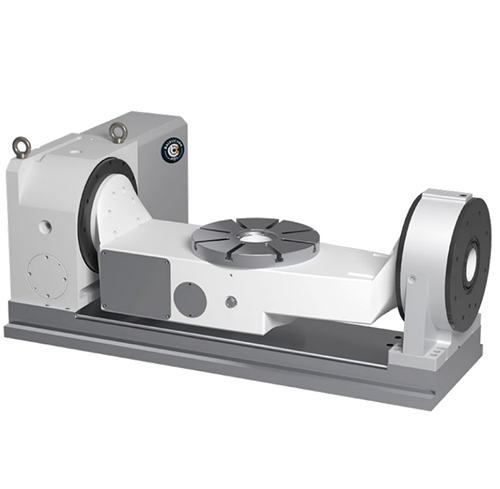

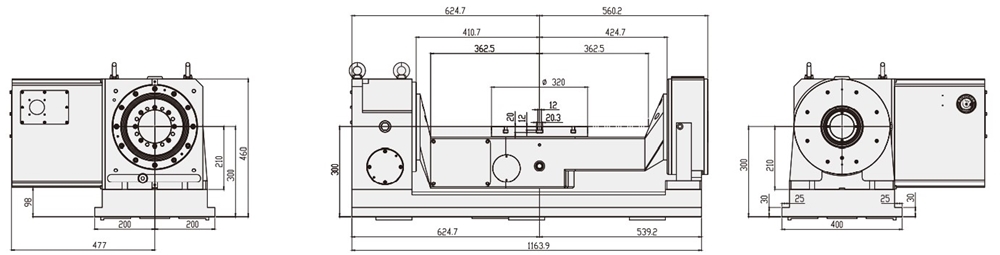

Cradle type and extended type

The tilting axis, the rotating axis and the support seat all adopt the embracing hydraulic brake mechanism

Product Model	WT-SL320	Servo motor (optional)	β12i HF-154;β22i HF-204
Panel Size	Φ320mm	Reduction Ratio	1:120 ;1:180
Disk Aperture	Φ110mm	Maximum Rotation Speed Of Worktable	25r.p.m ; 16.6r.p.m
Center Trough Hole	Φ80mm	Minimum Setting Angle	0.001°deg
Disk Height	300mm	Segmentation Accuracy	15″sec;30″sec
Disk T-Slot	12H8mm	Repeat Positioning Accuracy	4″sec;4''sec
Positioning Button	18H7mm	Locking Method	35Kg/cm²; 35Kg/cm²
Tilt Axis Angle Range	-45 ~110°	Brake Torque	31Kg/m ; 31Kg/m
Net Weight (about)	600Kg	Allowable Cutting Force	80Kg.m ; 80Kg.m
Horizontal placement	150KG	Placement	100KG
