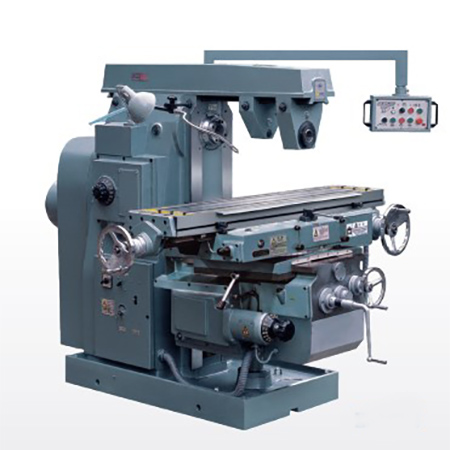

X6132B Horizontal Knee-Type Milling Machine with Box Guideway

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{width:446px}#det......Keywords:X6132b Horizontal Knee-type Milling Machine With Box Guideway - Buy Cnc Knee-type Milling Machine horizontal Knee-type Milling Machine x6132b Horizontal Knee-type Milling Machine With Box Guideway Product on CMN Industry Inc

Send Inquiry

Product Description

6132B Horizontal Knee-Type Milling Machine

The 6132B Horizontal Knee-Type Milling Machine is a type of milling machine that features a horizontal spindle and a knee-type
construction.

Item	Unit	57-3D	X6130C	X6132B	X6036	X6142
Worktable size	mm	250×900	300×1250	300×1320	360×1600	420×1800
T slot (N×W×D)	mm	3×14×54	3×14×63	3×18×80	3×16×63	3×18×90
Max. load bearing of worktable	kg	200	250	500	500	800
Longitudinal travel (Manual/Power) X	mm	480	800	800/780	1020/1000	1200/1180
Cross travel (Manual/Power) Y	mm	165	235	300/280	300/280	360/350
vertical travel (Manual/Power) Z	mm	300	400	410/400	410/400	470/410
Max. rotary angle of worktable		±45°	±45°	±45°	/	±45°
Spindle hole taper	mm	Mt3 7:24 30#	7:24 No.40	7:24 No.50	7:24 No.50	7:24 No.50
Arbor diameter	mm	Φ22 Ø27	Φ22 Ø27	Φ22 Φ27 Φ32	Φ22 Φ27 Φ32	Φ32 Φ50
Distance from spindle end to worktable surface	mm	60 ~ 360	30 ~ 470	40 ~ 440	50 ~ 460	40 ~ 500
Distance from table center to vertical guide way	mm	205-370	190-420	235 ~ 535	235 ~ 535	280 ~ 650
Distance from spindle center to arm	mm	160	162	155	155	200
Spindle speed steps	strps	12	12	18	18	18
Spindle speed range	r/min	32 ~ 1250	35 ~ 1600	30 ~ 1500	30 ~ 1500	30 ~ 1500
Feed speed steps	steps	12	12	18	18	18
Main motor power	kw	2/2.4	4	7.5	7.5	11
Feed speed range: Longitudinal X/Y/Z	mm/min	5.6 ~ 181	15 ~ 800	15 ~ 750	15 ~ 750	22 ~ 1100
	mm/min	11.3 ~ 366	15 ~ 800	15 ~ 750	15 ~ 750	22 ~ 1100
	mm/min	4.5 ~ 146.2	6 ~ 270	5.7 ~ 280	5.7 ~ 280	8.3 ~ 410
Rapid feed speed range (X/Y/Z)	mm/min	/	2100/2100/880	2250/2250/844	2250/2250/844	2400/2400/900
Feed motor power	kw	/	0.75	1.5	1.5	3
Machine dimension	mm	1400/1330/1478	1650/1540/1720	2327/1792/1720	2327/2067/1720	2522/2262/2047
Package dimension	mm	1330/1430/1930	1650/1570/2160	2200/1780/2120	2200/2070/2280	2470/2300/2300
Machine weight	kg	1100	1750	2850	2850	4200
Voltage/ Frequency	V/Hz	380/50	380/50	380/50	380/50	380/50

Here are some key features and applications of the 6132B: Features: 1. Horizontal Spindle: The machine is equipped with a horizontal spindle, which allows for horizontal milling operations. This spindle orientation is ideal for tasks such as slab milling, slotting, and facing. 2. Knee-Type Design: The machine features a knee-type construction, which provides stability, rigidity, and versatility. The knee can be adjusted vertically to accommodate different workpiece heights, allowing for precise positioning and easy setup. 3. Wide Range of Speeds: The 6132B typically offers multiple speed options, allowing operators to select the appropriate speed for different machining operations. This flexibility enables the machine to handle various materials and cutting requirements. 4. Milling Head: The machine is equipped with a milling head that can be swiveled or tilted, providing additional flexibility in machining angles and compound angles. This feature allows for the production of complex parts and contours. 5. Diverse Tooling Options: The machine is compatible with a wide range of tooling options, including different types of cutters, end mills, and drills. This versatility allows for the machining of different materials and the execution of various milling operations. Applications: 1. General Metal Machining: The 6132B is suitable for general metal machining applications. It can perform tasks such as face milling, end milling, slotting, drilling, and more on a variety of materials, including steel, aluminum, and brass. It finds application in industries such as general machinery manufacturing, automotive, and fabrication shops. 2. Production Machining: The machine's stability, rigidity, and versatility make it suitable for production machining. It can efficiently produce parts in large quantities with consistent quality and precision, making it valuable in high-volume manufacturing environments. 3. Toolroom Operations: The 6132B is commonly used in toolrooms for prototyping, repair work, and maintenance. Its flexibility and ability to handle diverse machining tasks make it a valuable asset for tool and die makers, allowing for the production and repair of various tooling components. 4. Education and Training: The machine is often used in educational institutions and training facilities for teaching milling operations and providing hands-on experience to students and trainees. Its knee-type design and ease of use make it suitable for learning the fundamentals of milling. In summary, the 6132B Horizontal Knee-Type Milling Machine offers features such as a horizontal spindle, knee-type construction, wide range of speeds, milling head flexibility, and diverse tooling options. It finds application in general metal machining, production machining, toolroom operations, and educational environments where stability, versatility, and precision are required for milling operations.

Vertical head: Vertical head can rotate ± 45 ° The spindle sleeve can move 75mm

Three axes driven by servo motor and ball screw:Three AIX are driven by servo motors and ball screws. They are controlled by a CNC system and can improve efficiency.

Transmission: The main shaft is driven by hardened gears, with a speed range of 18 levels. It provides a high rigidity process. The maximum torque can reach 2800N. M.

Optional accessories at extra cost(For conventional machines)

System and tool magazine

Ever-power is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Ever-power not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.

Ever-power is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model

Ever-power has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.

We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.
