Product Description

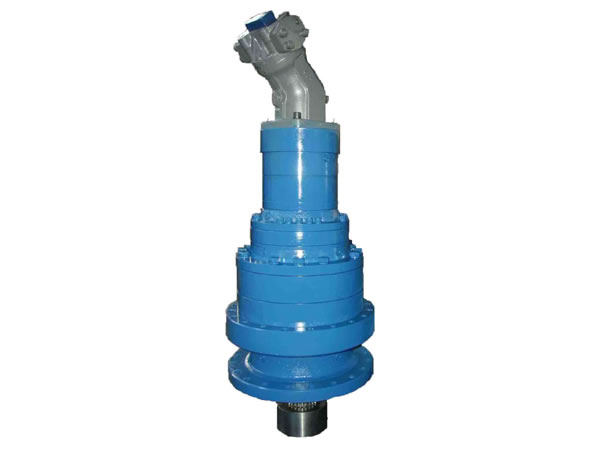

Gearbox(Planetary Slewing Drive)

The 700L series slewing drive can be alternatives to the following models of Trasmital Bonfiglioli
700T1F 701T1F 703T2F 705T2F 705T2L 706T2N 707T2N 709T2N 710T2N 711T2C 711T2F 713T3N 715T3N

Superior Performance

The 700T slewing drive gearbox is specifically designed for pinion and slewing ring drives. Successfully employed on tower cranes, shipboard and harbor cranes, wind generators and steering drives on ship propulsion systems, the planetary gear unit can be used in almost all applications where accurate positioning is required. These planetary slewing drives are suitable for the most demanding duties in any environment.

The design of thegearbox optimizes torque performance and radial load capacity in order to perfectly mesh the pinion and ring gear. For accurate adjustment, some versions have eccentric mounting between the pinion axis and the casing axis. Their wide range of ratios enables the selection of motor size and type which best suits the customer's requirements and application.

Key Features

1. Output torque range: 1000-180000 Nm

2. Gear ratios: i=3.3-3000

3. Support: slew support (with flange mounted)

4. Output shaft: splined or with integral pinion; output shafts supported by heavy duty capacity bearings

5. Applicable motors: axial piston hydraulic motors, hydraulic orbit motors, IEC electric motors

6. Hydraulic motor options: pressure relief valve, overcenter valve, parking brake

7. Electric brake: DC and AC type

8. Hydraulic brake: hydraulically released parking brake

If you need to customize, please click here

700L series slew drives

NB705L2

706L3 Pitch Drive

709AL

Technical data and installation dimension of NB700L Series gearbox are same as those of Bonfiglioli 700T Series
Type	Max. torque (N.m)			Range of ratios (i)	Max. Input speed (rpm)	Braking torque (N.m)
Type		Excavator	Crane	Range of ratios (i)	Max. Input speed (rpm)	Braking torque (N.m)
700L	1000	1200	3.38-32	3500	50-400
701L	1800	2400	3.38-32	3500	50-400
703AL	2500	3500	12-175	3500	50-400
705AL	5000	6500	12-175	3500	50-400
705L	5000	6500	12-175	3500	50-400
706AL	7700	12000	13-143	3500	50-1000
706L	7700	12000	13-143	3500	50-1000
707AL	10500	16500	13-256	3500	50-1000
707L	10500	16500	13-256	3500	50-1000
709AL	16000	26000	13-256	3500	50-1000
709L	16000	26000	13-256	3500	50-1000
711AL	32000	45000	14-223	2500	400-3200
711L	32000	45000	14-223	2500	400-3200
713L	40000	55000	50-276	2500	400-1000
715L3	70000	80000	54-242	2500	850-3200

700L Series gearboxes can be used interchangeably with the following models of Trasmital Bonfiglioli

700T1F

701T1F

703T2F

705T2F

705T2L

706T2N

707T2N

709T2N

710T2N

711T2C

711T2F

713T3N

715T3N

700S Series Slew Drives

706S2

Technical data and installation dimension of 700S Series gearbox are same as those of Rexroth GFB Series
Type	Max. torque (N.m )			Range of ratios (i)	Max. Input speed (rpm)	Braking torque (N.m)
Type		Excavator	Crane	Range of ratios (i)	Max. Input speed (rpm)	Braking torque (N.m)
706S	7700	10000	20-106	3500	400-1000
707S	10500	16500	25-134	3500	400-1000
709S	16000	26000	20-144	3500	400-1000
710S	18000	29000	36-52	3500	400-1000
710BS	23000	35000	110-176	3500	400-1000
710DS	27800	48500	32-181	3500	400-1000
714S	45000	68300	63-187	3000	600-2000
715S	65000	93300	63-212	3000	600-2000
716S	120000	-	63-1500	2500	600-2000
717S	180000	-	63-1500	2000	600-2000

For more models or customization, please click here!

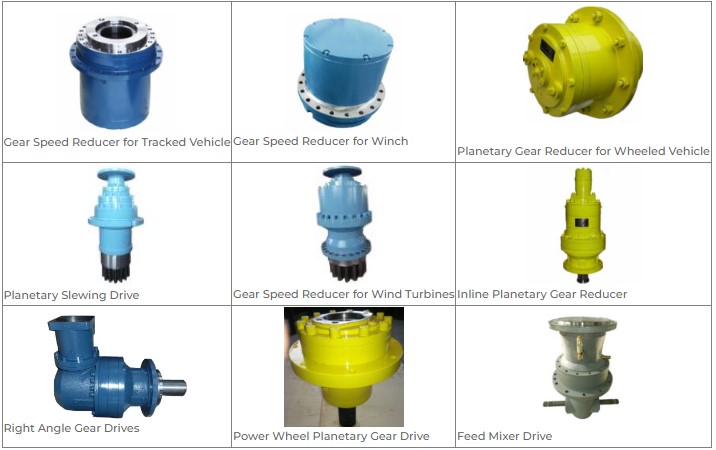

Click on the picture below for details

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.
