Product Description

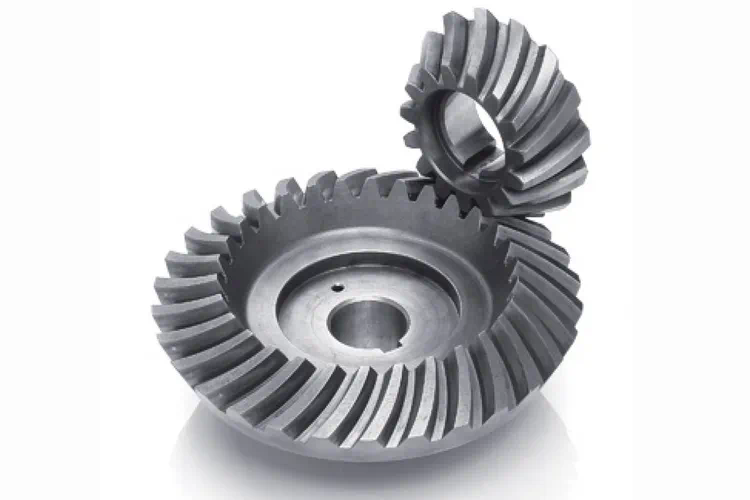

Customized High Precision Bevel Gears

Bevel Gears are gears that instead of being a cylinder with straight teeth (like a spur gear), it is formed into a cone (essentially a tapered spur gear). The teeth at the bottom of the bevel (the large end) taper down to smaller gear teeth at the top of the bevel gear (small end). Bevel gears usually run on shafts that are 90 degrees to one another whose axis intersect at some point above the gear teeth.

Bevel gears are often used to transmit power through a right-angle. They are well suited for heavy-duty applications and can be designed for high-speed operations. Relative to some of the alternative bevel solutions, they can reduce the cost of ownership by providing longer-lasting performance and minimal need for repairs or replacements. Due to the geometry of the gear teeth, bevel gears are more compact relative to their load rating, as well as more efficient than other types of right-angle gears. As the quality of a spiral bevel increases, the efficiency increases, the noise produced decreases, heat generation is reduced and vibration from their operation is lessened. Under the right conditions, a higher quality bevel gear set can reach 99% efficiency.

Applications of Bevel Gears:

(1) Bevel gears are employed in differential drives, which can transfer energy to two axles rotating at different velocities, such as those on a cornering automobile.
(2) Bevel gears are used as the basic function for a hand drill. As the handle of the drill is rotated in a vertical form, the
bevel gears modify the spinning of the chuck to a horizontal motion.
(3) The gears in a bevel gear planer allow for minor regulation during assembly and permit some displacement based on the deflection under operating powers without concentrating the force on the end part of the tooth.
(4) Spiral bevel gears are essential parts of rotorcraft drive arrangements.

Product Name	Customized High Precision Bevel Gears
Material	Carbon Steel, Stainless Steel, Copper, Brass or as You Required
Processing	Forging , Casting or Welding
Size	OEM Standard Size
Heat Treatment	High Frenquency Quenching and Hard Teeth
Performance	High precision, high wear resistance, low noise, smooth and steady, high strength
Pressure Angle	Customized
Service	OEM, ODM
Application	locomotives, printing presses, automobiles, etc.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
