Product Description

S series Helical-worm geared motor

F series Helical-bevel gear motor

K series helical-bevel gear motor

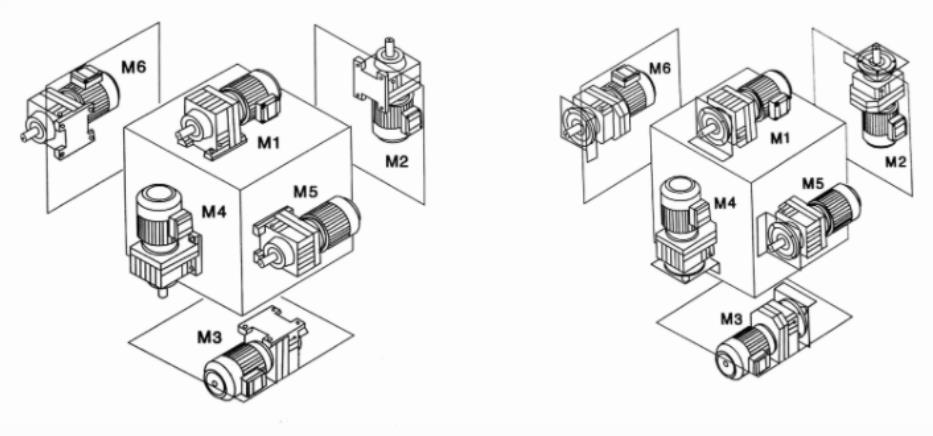

Performance characteristics 1. Serialized and modular design is adopted, with wide transmission ratio coverage and fine grading 2. High transmission efficiency, low energy consumption and superior performance 3. The gear is grinded by high-precision gear grinding machine, with stable transmission, low noise, large bearing capacity and long service life 4. Exquisite design: simple volume and installation, wide use 5. Various installation methods, suitable for omnidirectional universal installation 6. The combined combination of GS series and GRF series reducers can be realized, which is suitable for special low-speed applications Main materials 1. Box: HT250 high-strength cast iron. Injection cavity effectively reduces part damage 2. Gear: 20CrMo high-quality alloy steel, carbonitriding treatment (keep the tooth surface hardness HRC60 after fine grinding) 3. Flat key: 45 steel, surface hardness HRC50 Reducer efficiency 1. Due to the use of high-precision gears, oil seals and bearings, the friction is effectively reduced, and the interstage efficiency of gear transmission 2. In some installation modes, the input stage gear is completely immersed in lubricating oil. For large engine seat number and high input speed, oil mixing loss must be considered Conditions of Use 1. When the ambient temperature is - 40~50 ℃ (below 0 ℃), the lubricating oil shall be heated to above 0 ℃ or antifreeze lubricating oil shall be used 2. Input speed is not more than 2800 rpm 3. It can be used for forward and reverse rotation 4. No industry restrictions

Basic Versions	Take k series products as an example
K	Foot-mounted helical-bevel gear unit .
KA-B	Foot-mounted helical-bevel gear unit with hollow shaft
KV-B	Foot-mounted helical-bevel gear unit with hollow shaft and splinedhollow shaft to DIN 5480
KH-B	Foot-mounted helical-bevel gear unit with hollow shaft and shrink disc
KF	Helical-bevel gear unit in B5 flange-mounted version
KAF	Helical-bevel gear unit in B5 flange-mounted version with hollow shaft
KVF	Helical-bevel gear unit in B5 flange-mounted version with hollowshaft and splined hollow shaft to DIN 5480
KHF	Helical-bevel gear unit in B5 flange-mounted version with hollow shaft and shrink disc
KA	Helical-bevel gear unit with hollow shaft
KV	Helical-bevel gear unit with hollow shaft and splined hollow shaft to DIN 5480
KH	Helical-bevel gear unit with hollow shaft and shrink disc
KT	Helical-bevel gear unit with hollow shaft and torque arm .
KAZ	Helical-bevel gear unit in B14 flange-mounted version with hollow shaft
KVZ	Helical-bevel gear unit in Bl4 flange-mounted version with hollowshaft and splined hollow shaft to DIN 5480 .
KHZ	Helical-bevel gear unit in Bl4 flange-mounted version with hollow shaft and shrink disc
