Factory Supply TGP01S-A130 Mini Geared Motor Plastic Gearbox for Toy Car Attractive Price Waterproof Brush Permanent Magnet

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;......Keywords:Factory Supply Tgp01s-a130 Mini Geared Motor Plastic Gearbox For Toy Car Attractive Price Waterproof Brush Permanent Magnet - Buy Permanent Magnet Geared Motor Waterproof Gear Motor Brush Commutation Motor Product on CMN Industry Inc

Send Inquiry

Product Description

* TGP plastic gears gearbox plus A130 permanent magnet DC motor
* small size dc gear motor with low speed and big torque
* suitable to small diameter, low noise, and big torque application
* reduction ratio: 48,120,180,220,288

Characters of Mini Geared Motor
* Small size dc gear motor with low speed and big torque
* Suitable for small diameter. Low noise and big torque application
* Reduction ratio: 48,120,180,220,288
* Single shaft. Small size 18.7mm*22.3mm*64.5mm
* DC plastic gear motor with low speed and big torque

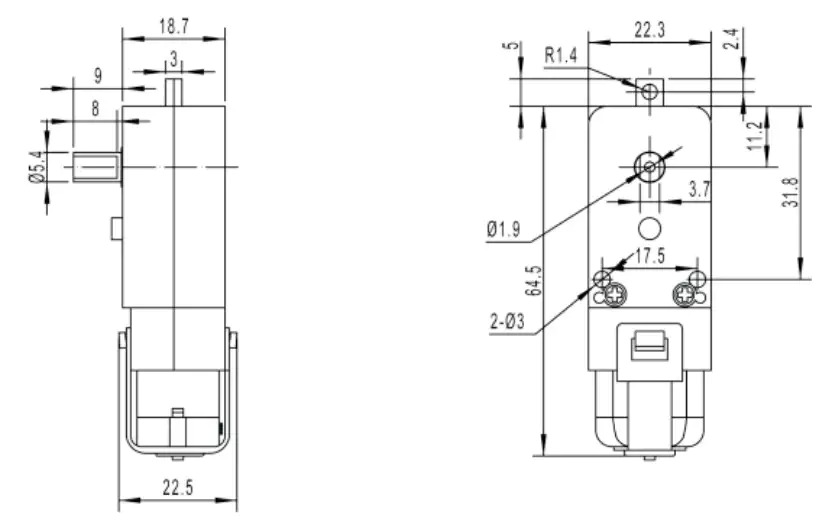

Gear motor dimension (mm)

Application: Robot, Toys, Remote Control Toy cars, etc.
Mini Geared MotorTechnical Data

Motor model No	Rated voltage VDC	No-load speed r/min	No-load current mA	Stall torque g.cm	Stall current A
TFE-130RA-12215	6.0	11500	120	20	0.85
TFE-130RA-14175	3.0	8000	120	13	0.70
TFE-130RA-18100	3.0	11500	250	20	1.80

It is also available if you have any special requirements for the motor.

Gear Motor Technical Data:
Gearbox with motor:TGP01S-A130-12215-XXX
Reduction ratio: 48 120 180 220 288
No-load speed rpm: 230 90 60 50 38
Max. momentary tolerance torque kg.cm: 0.7 1.4 2.0 2.2 2.8
Gearbox with motor
TGP01S-A130-14175-XXX
Reduction ratio: 48 120 180 220 288
No-load speed rpm: 150 60 40 33 25
Max. momentary tolerance torque kg.cm: 0.5 0.9 1.2 1.4 1.8
TGP01S-A130-18100-XXX
Reduction ratio: 48 120 180 220 288
No-load speed rpm: 230 90 60 50 38
Max. momentary tolerance torque kg.cm: 0.7 1.4 2.0 2.2 2.8

Application

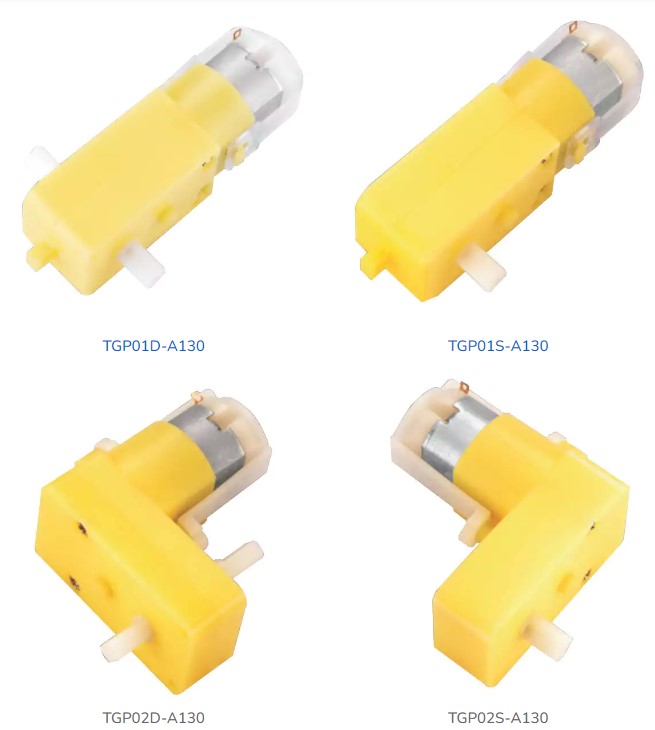

Other Plasstic gearbox plus A130 DC motor

What is a DC Motor?

A Direct Current (DC) motor is a rotating electrical device that converts direct current, of electrical energy, into mechanical energy. An Inductor (coil) inside the DC motor produces a magnetic field that creates rotary motion as DC voltage is applied to its terminal. Inside the motor is an iron shaft, wrapped in a coil of wire. This shaft contains two fixed, North and South,magnets on both sides which causes both a repulsive and attractive force, in turn, producing torque. ISL Products designs and manufactures both brushed DC motors and brushless DC motors. We tailor our DC motor's size and performance to meet your desired specs.
Mini Geared Motor selection process
Need help determining the motor suitable for your application? Check our motor selection guide or visit the ISL motor database.In the conceptual design stage, the motor selection process may be challenging, but our engineers will help. We provide concierge services for all DC motor and gear motor projects. Our team of engineers works with you to provide the best component solutions.The following points can help you determine and select the most suitable motor or gear motor for our application.

*Design requirements – the design evaluation stage of studying product development requirements, design parameters, equipment functions, and product optimization.
*Design calculations – calculations used to determine which motor is best suited for your application. The design calculation determines the transmission ratio, torque, rotating mass, service factor, suspension load, and test analysis.
*Type of DC motor/gear motor - the most common motor converts electrical energy into mechanical energy. These types of motors are powered by direct current (DC).
*Motor Specifications – Once the design calculations are performed, and the application parameters are defined, you can use this data to determine which motor or gear motor will best fit your application. Some of the most common specs to consider when selecting a motor or gear motor would be:
* * Voltage
* Current
* Power
* Torque
* RPM
* Life Expectancy / Duty Cycle
* Rotation (CW or CCW)
* Shaft Diameter and Length
* Enclosure Restrictions

For more details, please click here to contact us!

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
