Good Price Nmrv 075 Worm Gearbox with Engine Motor

FeaturesHigh modular design, biomimetic surface with owned intellectual property right.Adopt German worm hob to process the worm wheel.With the special gear geometry, it gets high torque, efficiency and long life circle.It can achieve the direct combination for two sets of gearbox.Mounting mode: foo......Keywords:Good Price Nmrv 075 Worm Gearbox With Engine Motor - Buy Nmrv 50 nmrv040 nmrv 063 Product on CMN Industry Inc

Send Inquiry

Product Description

Features
High modular design, biomimetic surface with owned intellectual property right.
Adopt German worm hob to process the worm wheel.
With the special gear geometry, it gets high torque, efficiency and long life circle.
It can achieve the direct combination for two sets of gearbox.
Mounting mode: foot mounted, flange mounted, torque arm mounted.
Output shaft: solid shaft, hollow shaft.
Components:
1. Housing: Die-cast Aluminium Alloy Gearbox (RV025~RV090)Cast Iron Gearbox (RV110~RV150)
2. Worm Wheel: We Ever-Power Group one of the biggest transmission suppliers in the worldarable Tin Bronze Alloy, Aluminum Bronze Alloy
3. Worm Shaft: 20Cr Steel, carburizing, quenching, grinding, surface hardness 56-62HRC, 0.3-0.5mm remaining carburized layer after precise grinding
4. Input Configurations: Equipped with Electric Motors (AC Motor, Brake Motor, DC Motor, Servo Motor) IEC-normalized Motor Flange Solid Shaft Input
Worm Shaft Tail Extension Input
5. Output Configurations: Keyed Hollow Shaft Output Hollow Shaft with Output Flange Plug-in Solid Shaft Output
6. Spare Parts: Worm Shaft Tail Extension, Single Output Shaft, Double Output Shaft, Output Flange, Torque Arm, Dust Cover
7. Gearbox Painting: Aluminium Alloy Gearbox:
After Shot Blasting, Anticorrosion Treatment and Phosphating, Paint with the Color of RAL 5010 Gentian Blue or RAL 7035 Light Grey Cast Iron Gearbox:

After Painting with Red Antirust Paint, Paint with the Color of RAL 5010 Gentian Blue
Models:

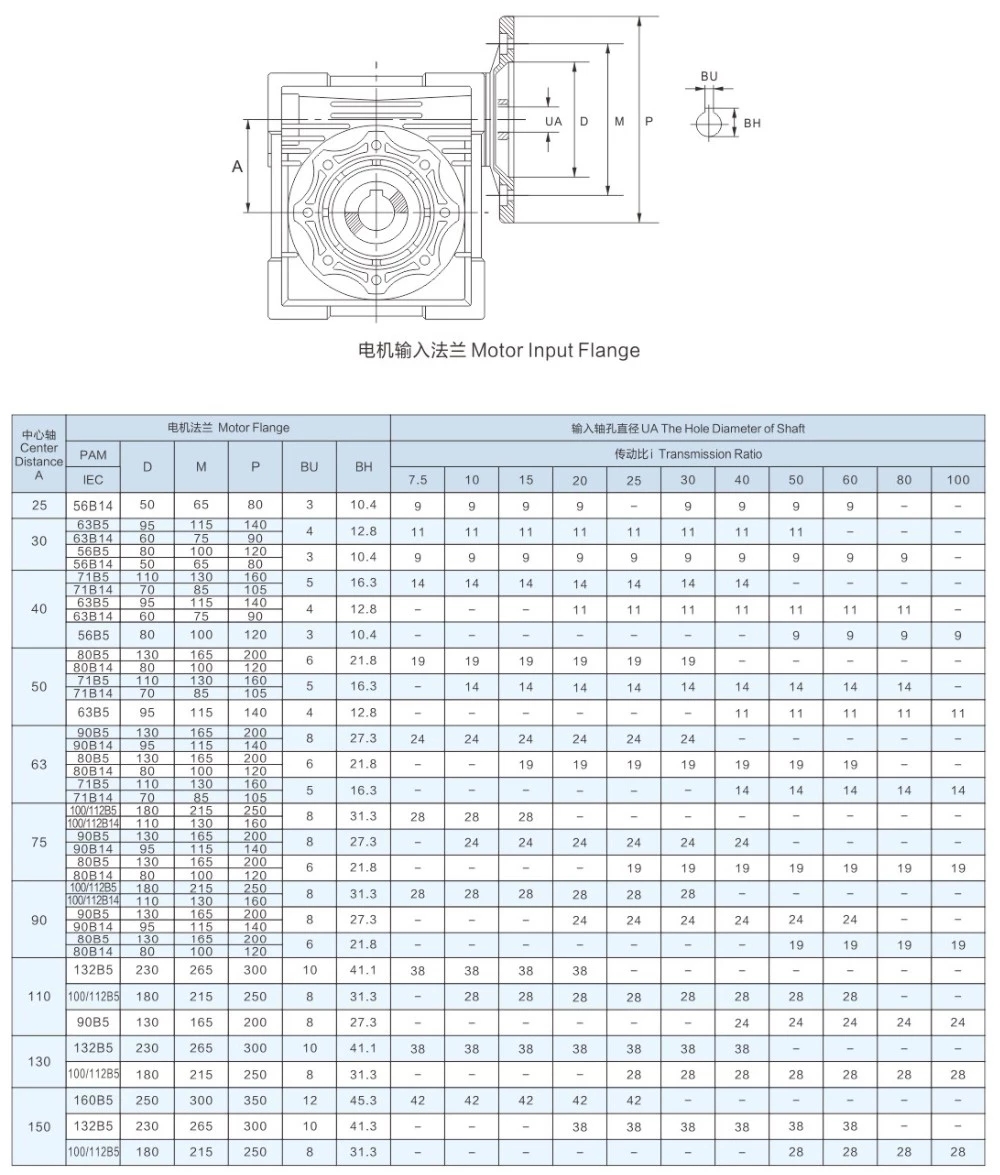

Hollow Shaft Input with IEC-normalized Motor Flange
RV025~RV150
Solid Shaft Input
RV025~RV150
Features:
1. Quality aluminum alloy gear box, light weight and not rust
2. 2 optional worm wheel materials: Tin bronze or aluminum bronze alloy
3. Standard parts and very flexible for shaft configurations and motor flange interface
4. Several optional mounting options
5. Low noise, High efficiency in heat dissipation

Click here for more details！

We have more than 10 years of production experience ,professional equipment and workers.

We are specialized in manufacturing transmission and conveyor roller chains in China.
We also can produce all kinds of non-standard roller chain according to your drawing.

Q:What is the strength of your company?
A:We have a engineer team,who have well experienced on products and machine designs.We can help you to solve the problem you meet.

Q:How about you quality?
A:We have our own prcoessional factory and worker,so believe that our products have advange over our competitors.

Q:What is you MOQ?
A:Minimum order quality is 1 piece.

Q:Could you produce customized product according to your drawing or sample?
A:Yes.We have abundant experience in the production of non-standard products.

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.

We can accept a variety of payment.
1) TT, 30% deposit , 70% before shippment.
2) L/C at sight. (high bank charge, not suggest , but acceptable )
3) 100% Western Union in advance. (specially for air shipment or small amoun)
4) Small order by paypal.
