Product Description

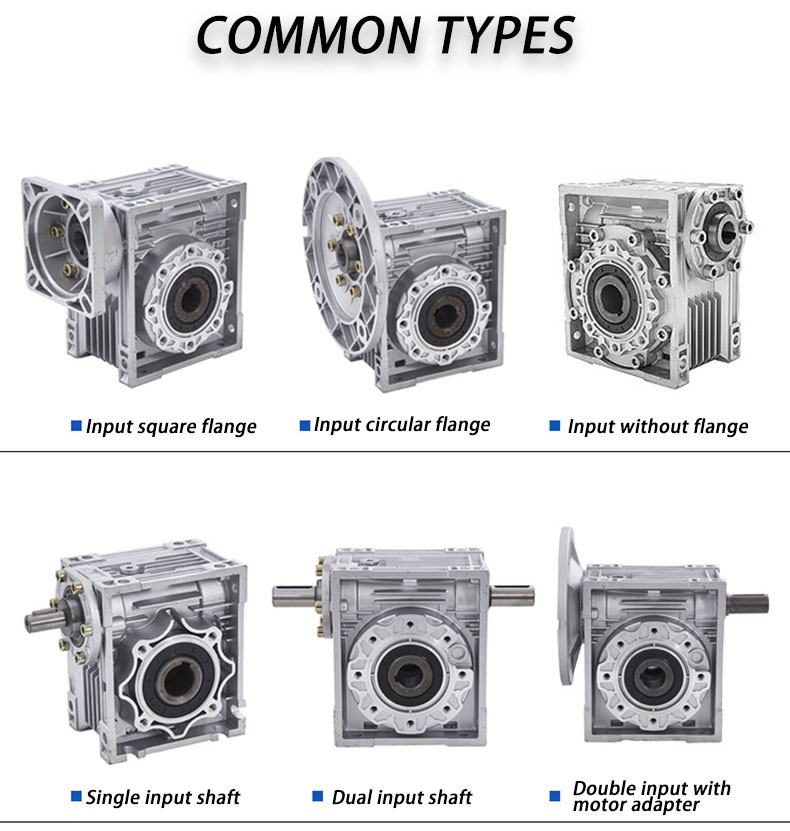

Aluminum worm gearbox

High modular design, biomimetic surface with owned intellectual property right.
Adopt German worm hob to process the worm wheel.
With the special gear geometry, it gets high torque, efficiency and long life circle.
It can achieve the direct combination for two sets of gearbox.
Mounting mode: foot mounted, flange mounted, torque arm mounted.
Output shaft: solid shaft, hollow shaft.

Model No	NMRV025, NMRV030, NMRV040, NMRV050, NMRV063, NMRV075, NMRV090, NMRV110, NMRV130, NMRV150
Ratio	5,7.5,10,15,20,25,30,40,50,60,80,100
Material	Housing: Size 25-110 Is Aluminum Alloy, Size 110-150 Is Cast-Iron
		Worm Wheel: ZCuSn10Pb1
		Worm:20Cr
		Pinion:Tin Bronze
		Output Shaft: Steel-45#
Type	Worm Gear Speed Reducer / Gearbox / Reductor
Color	Customized Color
Packing	Carton, Honey Comb Carton, Wooden Case with Wooden Pallet
Usage	Industrial Machine, Food Stuff, Ceramics, Chemical, Packing, Dyeing, Wood Working, Glass, etc.
Flange	IEC standard flange or customized dimensions
Housing Material	Aluminum&Cast iron
Size	11 sizes(WMRV25~WMRV185)
Power	0.06~22 KW
Nominal torque	≤2548 N.m
Ratio	5~100

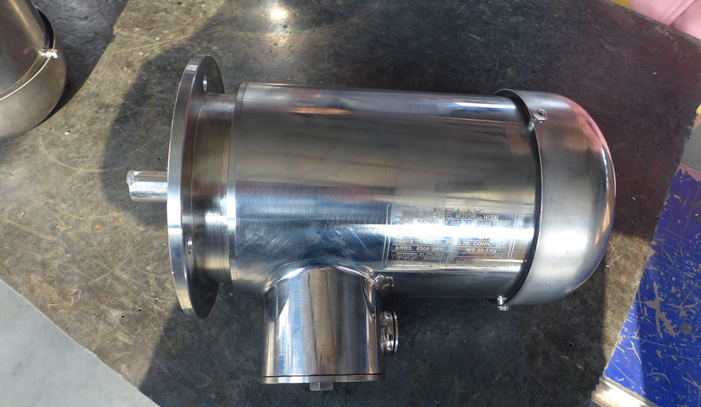

Stainless steel worm gearbox

CMN stainless steel Food Safe motors and worm reducers with IEC or NEMA frame will help food and beverage companies to improve reliability, while ensuring food safety.

Features 1.Smooth stainless steel enclosures easy to clean and sanitize 2.IP69 for water protection rating ensures suitability for clean in place washdown procedures 3.Laser engraved rating plates eliminates contamination trapped beneath traditional rating plates 4.Encapsulated windings prevent any water and moisture from reaching the windings 5.Low surface temperature with less operation costs due to high efficiency 6.H1 food grade synthetic grease Motors are available in the power range 0.18 - 7.5 kW, 2-6 pole for 230-690 V at 50 and 60 Hz.

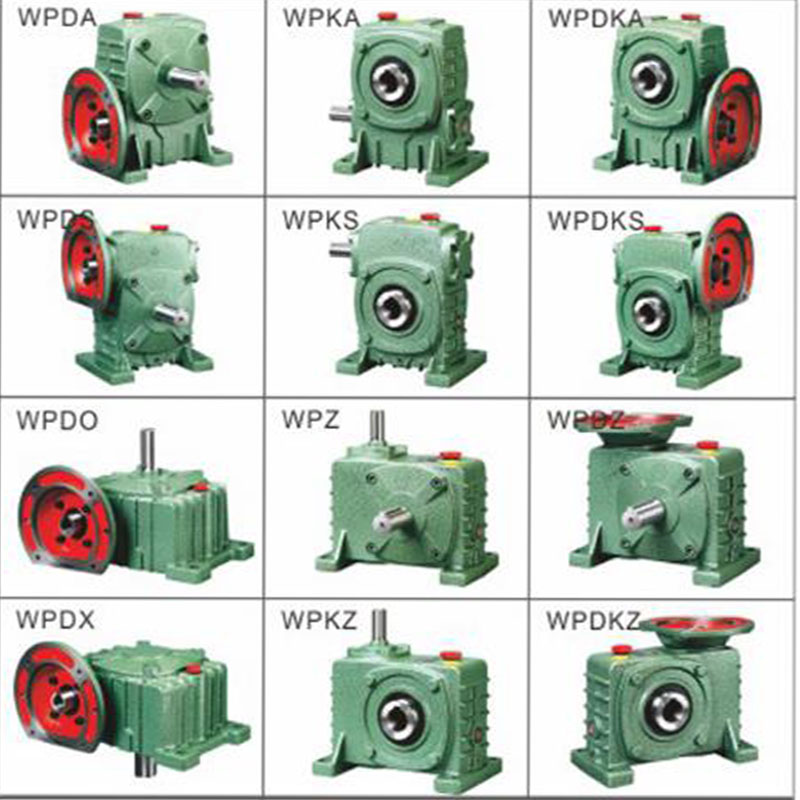

Cast iron worm gearbox

Components:
1. Housing: Cast Iron
2. Gears: Worm Gears, 1 stage
3. Input Configurations: Solid Input Shaft, Motor Flange - IEC B5
4. Output Configurations: Solid Output Shaft, Hollow Output Shaft

Models & Variants:

WPA Series - Lower Input Shaft
WPS Series - Upper Input Shaft
WPDA Series - Lower Input Flange
WPDS Series - Upper Input Flange
WPO Series - Vertical Upward Output Shaft
WPX Series - Vertical Downward Output Shaft
WPDO Series - Vertical Upward Output Shaft, Input Flange
WPDX Series - Vertical Downward Output Shaft, Input Flange
