Product Description

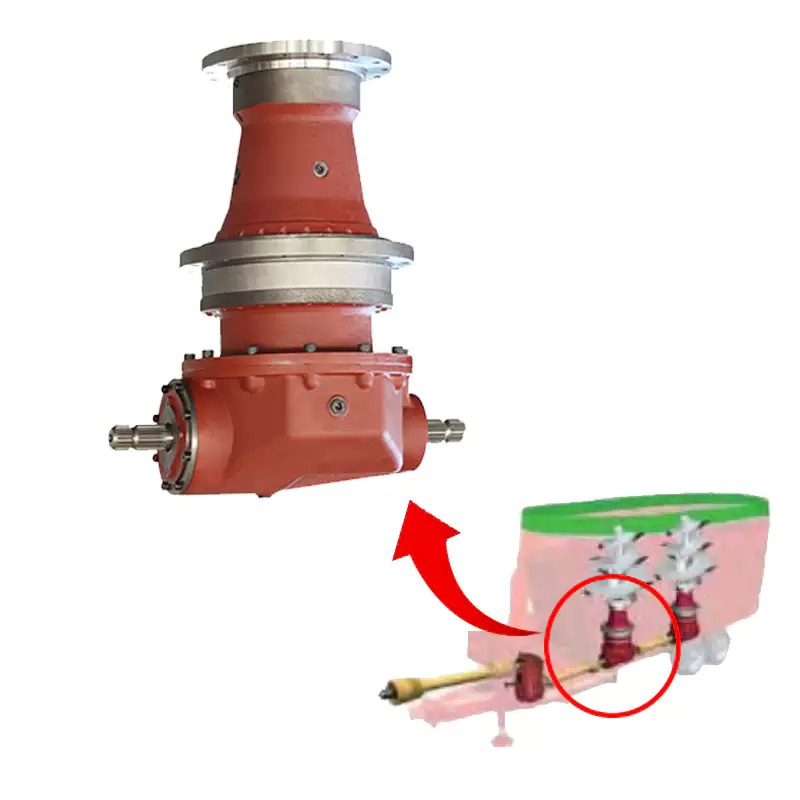

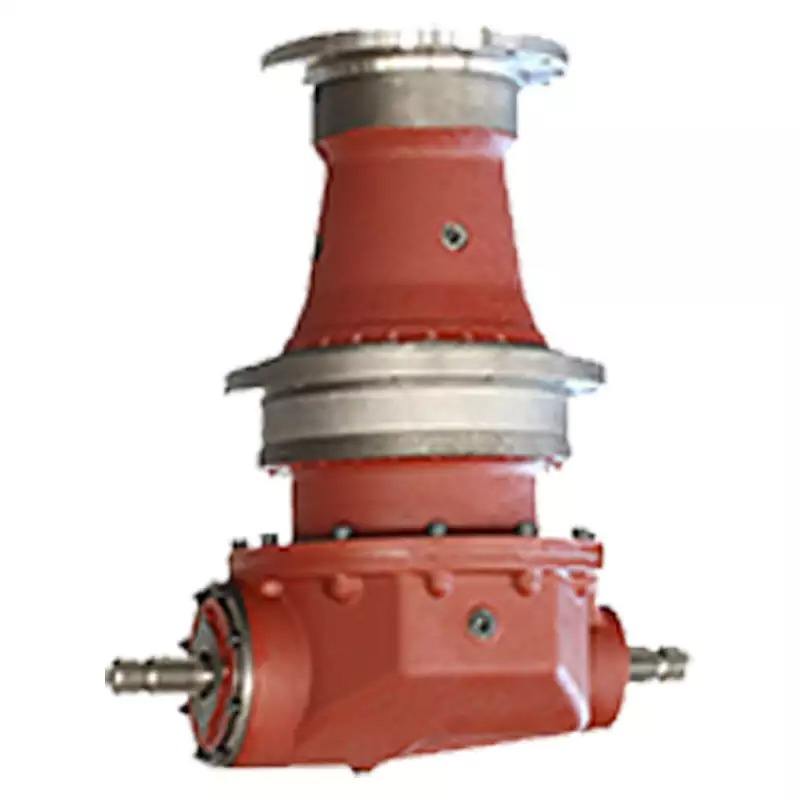

Description of PAG Auger Drive Planetary Gearbox Planetary gear boxes of feed mixers are widely used in agricultural and animal husbandry machinery in cattle farms. Ever power has developed more than 20 planetary gear reducers and feed mixer gearboxes of different sizes for regular customers. Popular models are available from stock. For the planetary gearbox of the feeding mixer driven by the tractor, the input speed usually does not exceed 540pm, and the output speed range is 20pm to 25m. The number of cows usually exceeds 200. The vertical planetary reducer of TMR mixer is a popular type of TMR mixer / feed. It is used in the gearbox of the mobile feeding mixer. Average mixing capacity: ≤ 25m3sgr provide planetary gearboxes of various sizes for mobile TMR feed mixer

Parameter of PAG Auger Drive

Size	Continuous Torque Nm	Maximum Torque Nm	Input speed RPM	Transmission Ratio(Min-Max)i	Input Shaft
PGA502	3810	7620	540	12.36-15.51	1" 3/8 Z6
PGA1002/3	8500	17000	540	16.8-30.6	1" 3/4 Z20
PGA1202	11600	23200	540	11.1-19.4	1" 3/4 Z20
PGA1602/3	15700	31400	540	13.4-47.5	1" 3/4 Z20
PGA1702/3	15700	31400	540	13.4-47.5	1" 3/4 Z20
PGA2102/3	21000	47000	540	12.1-62.1	1" 3/4 Z20
PGA2502	23780	48000	540	13.6-23.6	1" 3/4 Z20
PGA3003/4	30760	61520	540	25.7-84.4	1" 3/4 Z20
PGA4203	42000	142000	540	27.8-91.4	1" 3/4 Z20

Characteristics of PAG auger drive *Modular design, easy to install *Peak torque capacity *Lubricated upper bearings ensure faster, unobtrusive performance *16.32:1 wide scale range to achieve multi-functional performance *Labyrinth seal protection increases durability and stability *Modular design, easy to maintain industrial gearbox *High performance output, compact size *PAG planetary gearbox is characterized by fast cleaning speed

Application of PAG screw transmission The planetary gearbox manufactured by Reggiana riduttoiri is used to provide the rotation of feed mixer and biogas plant. The planetary gear transmission structure is firm and compact, and the installation is simple: *Carriage *Self propelled machine *Stationary machine *It ensures the operation of feed and biogas applications.

PAG auger drive manufacturer For 15 years, we have been focusing on mechanical transmission solutions. We are always committed to providing customers with high-quality reducers and professional configurations to meet their unique requirements. We have established long-term cooperative relations with customers in many fields. We sincerely hope that you can become one of them and work with us to promote technological progress and explore the future.

We have the most advanced testing equipment, such as spectrum analyzer, tensile strength tester, impact value tester, hardness tester, magnetic particle flaw detector, sand blasting machine and heat treatment equipment, which are used to detect the chemical composition of rubber materials. In addition, the precision machining workshop has advanced equipment: 23 CNC lathes, 10 vertical CNC boring and milling machines imported from South Korea, 1 horizontal boring and milling center, 2 ordinary milling machines, 2 general lathes, 1 grinder, 10 drilling machines and taps, 2 semi-automatic saws, 1 coordinate measuring machine, 1 projector, 1 processing surface quality testing machine, 1 precision machining workshop, 1 milliampere hour altimeter. The tolerance of our products can be controlled below 0.01mm.

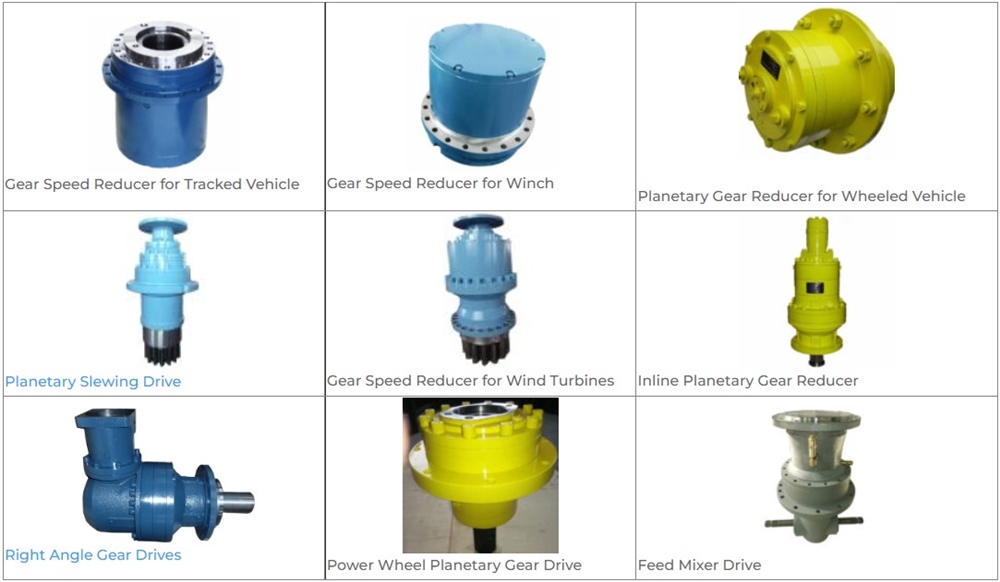

Other Types of Planetary Gearboxes

For more models or customization, please click here!

Click on the picture below for details

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.
