RPR Slewing Drive Planetary Gearbox Replacement of Brevini Riduttori RPR2046 RPR3046 RPR2065 PR3065 RPR2150 RPR3150 RPR2250

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-......Keywords:Rpr Slewing Drive Planetary Gearbox Replacement Of Brevini Riduttori Rpr2046 Rpr3046 Rpr2065 Pr3065 Rpr2150 Rpr3150 Rpr2250 - Buy Planetary Gearbox,Planetary Gearbox Vehicle Replacement Of Brevini Riduttori,Rpr Slewing Drive Planetary Gearbox Replacement Product on CMN Industry Inc

Send Inquiry

Product Description

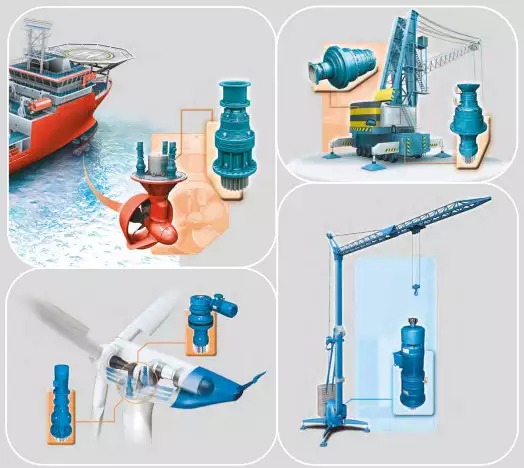

Features Of RPR Slewing Drive Gearbox This series of RPR slewing drive planetary gear units is specially designed to drive slewing bearings in industrial applications. For many years, it has been successfully applied to the steering drive of tower cranes, marine and port cranes, wind turbines, and ship propulsion systems. Its advantages are compact size, high performance, simple installation, reliable operation, modular design, and quality certification.

Brevini riduttori model	RPR2046	RPR3046	RPR2065	PR3065	RPR2150	RPR3150	RPR2250	RPR2800
our replacement model	EP-RPR2046	EP-RPR3046	EP-RPR2065	PR3065	EP-RPR2150	EP-RPR3150	EP-RPR2250	EP-RPR2800
Brevini riduttori model	RPR3250	RPR2255	RPR3255	RPR2320	RPR3320	RPR2600	RPR3600	RPR3800
our replacement model	EP-RPR3250	EP-RPR2255	EP-RPR3255	EP-RPR2320	EP-RPR3320	EP-RPR2600	EP-RPR3600	EP-RPR3800

features • modular design • stage composition of 1 to 6 reduction stages (2-6 with bevel gears) • variant of output bracket fixing solution: front flange and double socket • integral output pinion and spline shaft with loose pinion • various hydraulic and motor adapters • solid input shaft • spring loaded hydraulic release (sahr) brake • maritime certification • fluororubber seals for high temperature environments • specific painting cycles according to EN ISO 12944

Type	planetary, bevel
Shaft orientation	coaxial, right angle
Torque	> 10 kNm, 2 - 5 kNm, 5 - 10 kNm
Shaft configuration	solid-shaft, vertical output shaft
Number of stages	multi-stage
Performance	high-performance
Applications	for cranes, for slewing drive
Other characteristics	compact, modular, generator, high-temperature

Parameters of RPR Slewing Drive Gearbox

Size	Torque FEM M5 (T5,L2) [Nm]	Max Torque [Nm]
RPR046	3.400 - 5.500	6.000
RPR065	6.600 - 9.550	11.500
RPR150	13.450 - 18.100	23.000
RPR250	21.350 - 29.450	46.200
RPR255	21.350 - 29.450	46.200
RPR320	21.000 - 33.850	46.200
SLS300	31.850 - 48.700	74.600
SLS400	39.950 - 61.400	100.000

Application of RPR Slewing Drive Gearbox

*Construction (dryer, crusher, mixer, crane, mobile scaffold) *Material handling (gantry crane, mobile dock crane, mobile warehouse, bridge crane) *Waste and sewage treatment (rotary filter, thickener, clarifier, temperature rise machine, agitator) *Mining and quarrying machinery (drilling and excavation, machinery, selectors, classifiers, conveyors, Crushers) *Wind energy (pitch drive, yaw drive) substructure (movable roof, movable gantry, piling) *Steel processing machinery (conveyor, extruder, cutter, coiler, rolling mill) *Food industry (mixer, mixer, conveyor, fruit extractor)

Planetary gearbox manufacturer CCMS Co., Ltd. is a company that exports and produces all kinds of precision machined castings and machine parts. Our machining castings include investment casting (wax loss casting), sand casting and die casting. We have accumulated rich experience in casting processing and manufacturing, gathered a group of skilled workers and experienced engineers, and have a high engineering level. Our annual production capacity exceeds 4000 metric tons.

We have the most advanced testing equipment, such as spectrum analyzer, tensile strength tester, impact value tester and hardness tester, magnetic particle flaw detector, sand blasting machine and heat treatment equipment for the detection of chemical composition of rubber materials. In addition, the precision machining workshop has very advanced equipment: 23 CNC lathes, 10 vertical CNC boring and milling centers imported from South Korea, 1 horizontal boring and milling machine, 2 ordinary milling machines, 1 grinder, 10 drilling machines and taps, 2 semi-automatic saws, 1 coordinate measuring machine, 1 projector, 1 processing surface quality testing machine and 1 mahr altimeter. The tolerance of our products can be controlled below 0.01mm. The accuracy of the testing machine is within 0.005mm. ISO9000 has been implemented. Raw materials include waxless castings and forgings of steel, alloy steel and ductile iron. All parts will be tested for material chemical composition, strength and elongation. 80% of our products are exported to North America and European countries. The products are applicable to hydraulic cylinders, truck brakes and engines, such as truck hydraulic cylinder ends, connecting rods, pistons, connecting rods, oil valves, oil seals, rubber seals and brake valves. At present, we are providing truck brake parts for PAC brakes. Some of our main customers are Hunter engineering, Rocore, globe, tiger, tribal, fusion, Emerson, etc. We strictly implement ISO9000 quality system in the production process. Our customers accept all our products. With our factory, we can cooperate with our engineering team to provide competitive price and technical support for quality assurance and new product development. If you are interested in some of our products, please contact us.

Other Types of Planetary Gearboxes

For more models or customization, please click here!

Click on the picture below for details

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.
