RV Worm Gear Electric Motor Speed Reducer with High Quality Drive Power Transmission Nmrv Box Motor 3 Phase Gearbox

RV worm gear electric motor speed reducer with high quality drive power transmission nmrv box motor 3 phase gearbox1. Mad of high-quality aluminum alloy,light weight and non-rusting2. Large output torque3. Smooth in running and low in noise,can work long time in dreadful conditions.4. High in radiat......Keywords:Rv Worm Gear Electric Motor Speed Reducer With High Quality Drive Power Transmission Nmrv Box Motor 3 Phase Gearbox - Buy Worm Reducer Rv Series Chinese 650cc Gearbox 4x4 Nmrv 200 Motor Rossi Aluminium Gearboxreductor Gear 22kw drive Rv Series 15cm Transformation Master Blue Thunderbolt Ko Drive Gear 3 Revearse Gearbox Gear Motor China power Transmission Rv Series 20hp Gearbox 351 Ratio Gearbox Allwin Reduction Gear Right Angle Gear Drive Product on CMN Industry Inc

Send Inquiry

Product Description

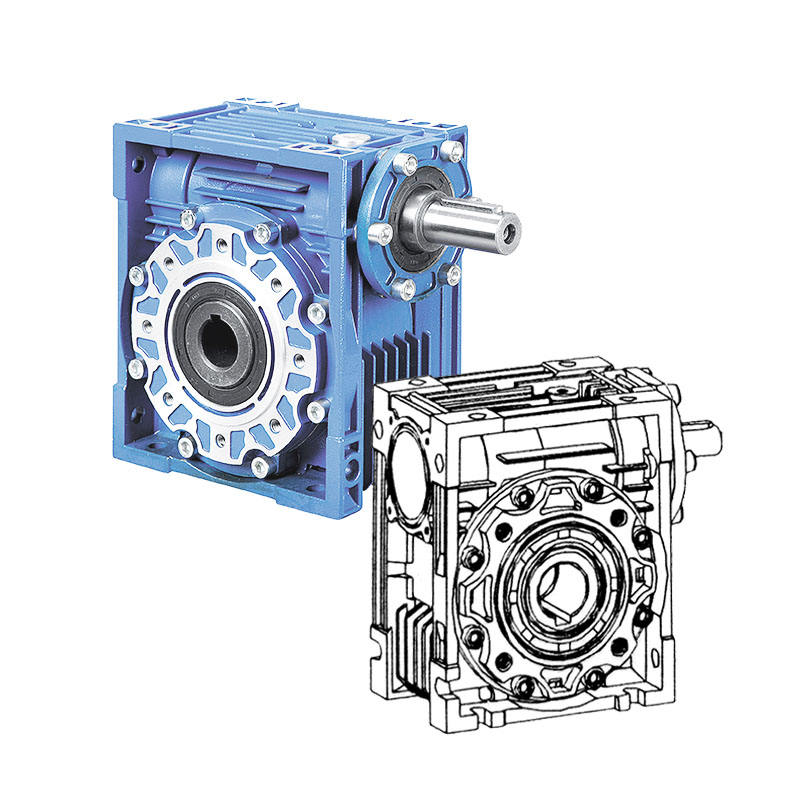

RV worm gear electric motor speed reducer with high quality drive power transmission nmrv box motor 3 phase gearbox

1. Mad of high-quality aluminum alloy,light weight and non-rusting

2. Large output torque

3. Smooth in running and low in noise,can work long time in dreadful conditions.

4. High in radiating efficiency.

5. Good-looking in appearance,durable in service life and small in volume.

6. Suitable for omnibearing installation.

Model No.:	NMRV025, NMRV030, NMRV040, NMRV050, NMRV063, NMRV075, NMRV090, NMRV110, NMRV130, NMRV150
Ratio:	5,7.5,10,15,20,25,30,40,50,60,80,100
Color:	Blue(Ral5010)/Silver Grey (RAL9006) Or On Customer Request
Material:	Housing: Size 25-110 Is Aluminum Alloy, Size 110-150 Is Cast-Iron
		Worm Wheel: ZCuSn10Pb1
		Worm:20Cr
		Pinion:Tin Bronze
		Output Shaft: Steel-45#
Usages:	Industrial Machine: Food Stuff, Ceramics, Chemical, Packing, Dyeing,Wood working, Glass.
IEC Flange:	IEC Standard Flange Or On Customer Request

NMRV gearbox

NMRV reducer is a new type of reducer, also known as RV reducer. "NMRV" is a general term, it refers to the aluminum reducer, the
world has been used to aluminum reducer called "NMRV reducer". The main components are oil seal, oil plug, worm gear box, ball
bearing, output shaft, worm wheel, worm, output shaft, motor disk (flange), output shaft cover, hexagon socket head screw, double
round key, gasket, etc. BHADE reducer, one of NMRV series, has single flange input, flange output or double shaft output.

Benefits of Worm Gearbox / Reducer
1.Unique housing design will distinguish you from other competitors.
2.Multiple choice for oil seal.
3.The dimensions can be customized according to customer's requirements.

Type	Worm Gear Speed Reducer / Gearbox / Reductor
Model	WMRV 25/30/40/50/63/75/90/110/130/150/185
Color	Customized Color
Packing	Carton, Honey Comb Carton, Wooden Case with Wooden Pallet
Usage	Industrial Machine, Food Stuff, Ceramics, Chemical, Packing, Dyeing, Wood Working, Glass, etc.
Flange	IEC standard flange or customized dimensions
Housing Material	Aluminum&Cast iron
Size	11 sizes(WMRV25~WMRV185)
Power	0.06~22 KW
Nominal torque	≤2548 N.m
Ratio	5~100

We are a manufacturer in Zhejiang Province, China. Our company owns the ability of manufacturing, processing, designing and R&D. We welcome your visit.

We handle the products of power transmission, our lines mainly cover series products in speed reducers, gearboxes , associated electricial motors and other power transmission accessories. Based on the versatile functions, our products can be utilized in many fields: machines of waste water treatment, dredgers, chemical industry, cranes, metal working mills, conveyors, paper industry, cement industry, cableways and so on.With the excellent quality and reasonable price , our products enjoy a good reputation from customers and the peers all over the world.

Our prices are always competitive. If the customer can place a large order, we surely will allow discount.
