XRV High Torque Low RPM Worm Gear Reducer for Automatic Conveyor Car Wash System Heavy Duty IP67 Waterproof Gearbox With Motor

XRV High Torque Low RPM Worm Gear Reducer for Automatic Conveyor Car Wash System Heavy Duty IP67 Waterproof Gearbox With Motor

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-......Keywords:Xrv High Torque Low Rpm Worm Gear Reducer For Automatic Conveyor Car Wash System Heavy Duty Ip67 Waterproof Gearbox With Motor - Buy Automatic Car Wash Gearbox Conveyor Car Wash System Reducer Heavy Duty Gearbox For Car Wash Waterproof Car Wash Transmission Low Rpm Worm Gear Motor High Torque Gear Reducer For Tunnel Wash Touchless Car Wash Equipment Parts Rollover Carwash Gear Drive Quiet Operation Gearbox Ip67 Waterproof Speed Reducer Industrial Car Wash Motor Durable Transmission For Car Wash Product on CMN Industry Inc

Send Inquiry

Product Description

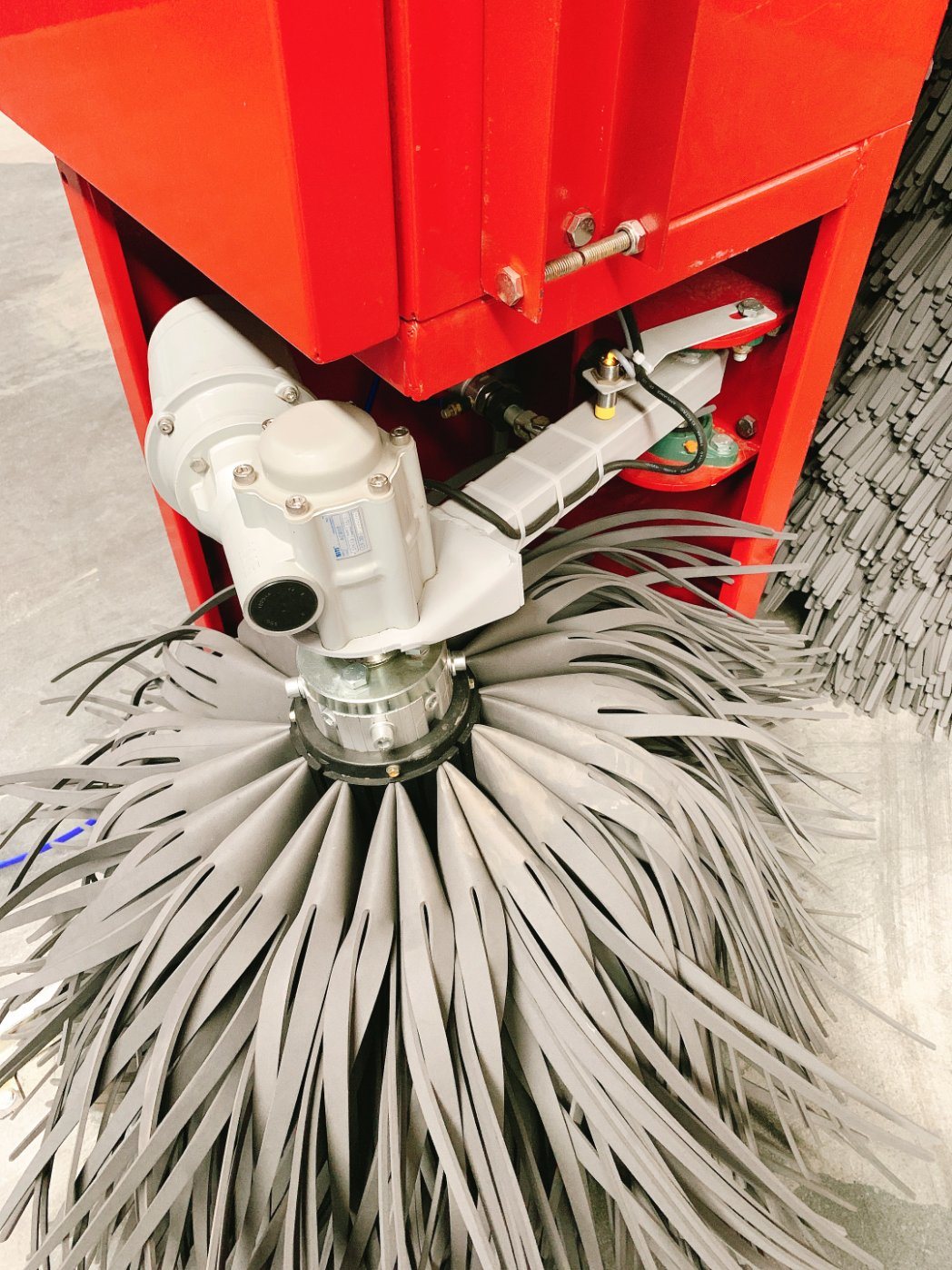

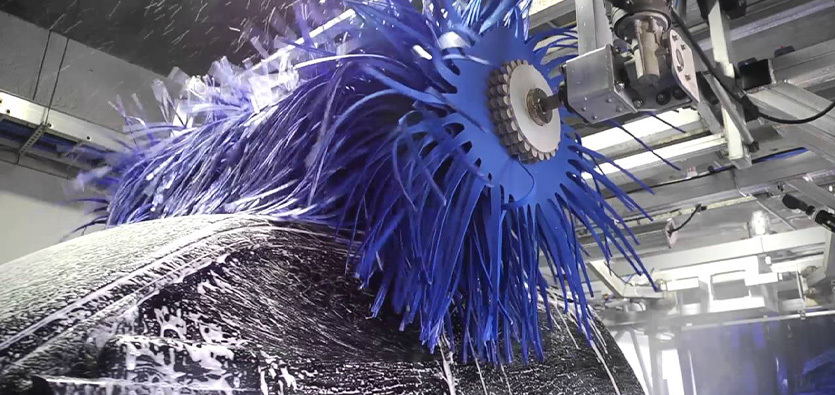

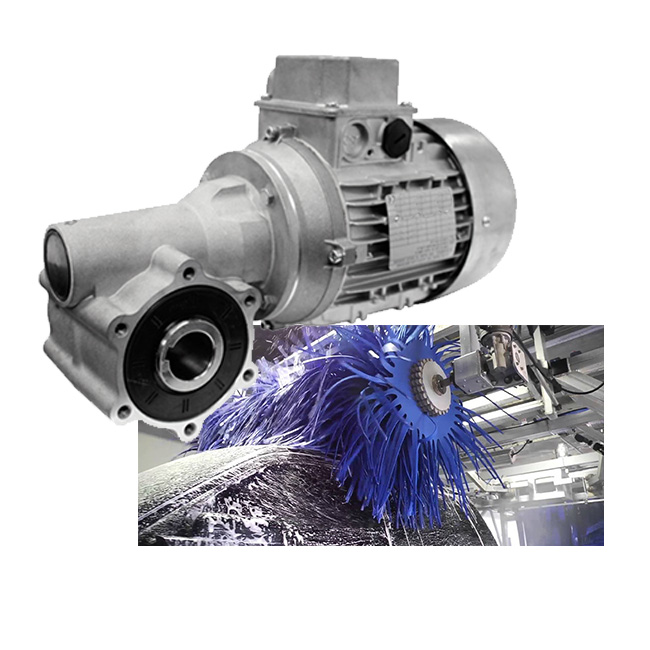

XRV series reducer for automatic car washer is a special worm gear reducer used for auto car washer，which has the advantages of easy installation，low noise，long life and high protection class. The protection level can reach IP56. The supporting motor power can be 0.25kw~0.75kw，and matching flanges，to meet the different needs of customers.
XRV High Torque Low RPM Worm Gear Reducer for Automatic Conveyor Car Wash System Heavy Duty IP67 Waterproof Gearbox With Motor
XRV High Torque Low RPM Worm Gear Reducer for Automatic Conveyor Car Wash System Heavy Duty IP67 Waterproof Gearbox With Motor
MRV series reducer for automatic car washer is a modified RV reducer used for auto car washer， which has the advantages of higher cost performance, wide applicability, and XRV‘s advantages. The install is more convenient and flexible than XRV. The supporting motor power can be 0.25kw~0.75kw， and matching flanges， to meet the different needs of customers.
XRV High Torque Low RPM Worm Gear Reducer for Automatic Conveyor Car Wash System Heavy Duty IP67 Waterproof Gearbox With Motor

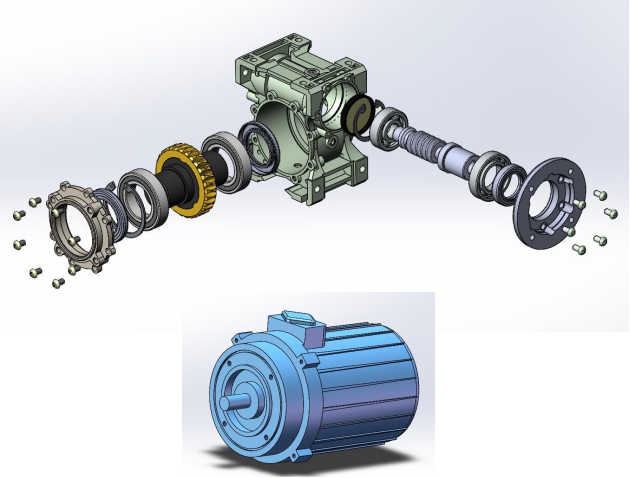

1、 Modular design of every module， with more parts common. 2、 Large ratio range， more choice than common RV reducer. 3、 Wheels material is SUS304+GcuSn12， to ensure high wear resistance and corrosion resistance. 4、Compact and compact body can fit most equipment structure 5、 Full-Synthetic Oil lubrication （the viscosity of 320/220 can be chosen）. 6、 The housing material is ADC12 with powder paint， better anticorrosive properties, and appearance. 7、 Sealing with NOK oil seal（NBR）， good sealability. 8、Worms material is 20CrMnTi with carburizing and quenching， thickness 0.25-0.45mm， HRC58-62. 9、IP Grade can reach IP67, adapt to most spraying conditions
XRV High Torque Low RPM Worm Gear Reducer for Automatic Conveyor Car Wash System Heavy Duty IP67 Waterproof Gearbox With Motor
XRV High Torque Low RPM Worm Gear Reducer for Automatic Conveyor Car Wash System Heavy Duty IP67 Waterproof Gearbox With Motor
XRV High Torque Low RPM Worm Gear Reducer for Automatic Conveyor Car Wash System Heavy Duty IP67 Waterproof Gearbox With Motor
XRV High Torque Low RPM Worm Gear Reducer for Automatic Conveyor Car Wash System Heavy Duty IP67 Waterproof Gearbox With Motor
