Product Description

5V Series Cast Iron Two-Groove Sheaves with Split Taper Bushings for "5V" Belts

5V series double groove tapered bushing pulley is applicable to 5V, 5VX, 5V belt and 5VX belt. They range in diameter from 4.40 "to 28.0". According to the pulley size, they use P1, Q1 or R1 split taper bushings, which we also have in stock. Most of our double grooved 5V split tapered pulleys are made of high-strength grade 35 cast iron, coated with phosphate and coated with anti-corrosion paint. All these are balanced at the factory to ensure smooth operation of the machine.

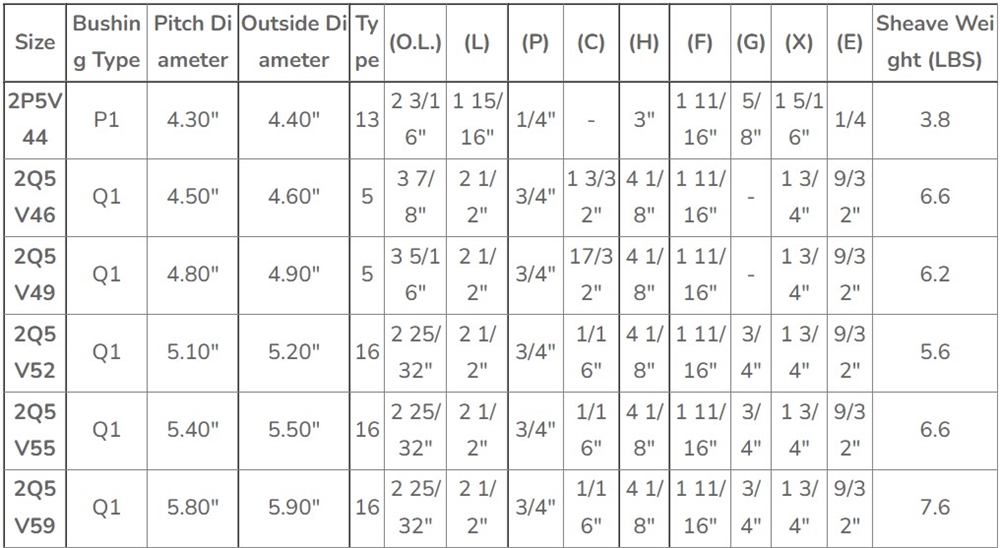

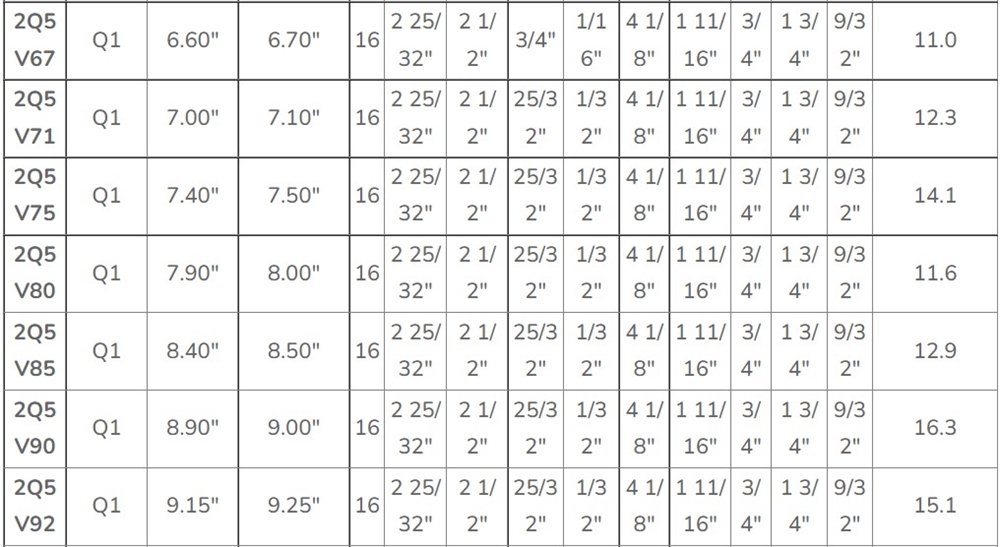

Two-Groove 5V Split Taper Sheave Size Chart

For more details, please click here to contact us!

Supporting 5V, 5VX series V belt (1) 5V series V-belt Classic 5V series V-belts have a top width of 0.63 ", a thickness of 0.53", and an angle of 38 °. In addition, the 5V V-belt is one of the oldest V-belts in the industry. Because of their long-term success and economic operation, they are also one of the most widely used belt series in the industry. The high-quality 5V series v-belts we provide are manufactured according to ISO 9001 specifications. They are oil and heat resistant and can be directly interchanged with other brands. They are composed of natural rubber compound and polyester rope, and are covered with a mixture of cotton and polyester, with high durability. (2) 5V series ribbon V-belt The 5V series v-belts are part of the "classic" series of v-belts because they are one of the oldest styles used and one of the most common styles. Our belts are manufactured according to ARPM standards and have excellent strength, durability and performance. The top width of each 5V series v-belt (belt/rib) is 0.63 ".

(3) 5VX toothed V-belt The top width of the 5VX toothed v-belt is 0.53 "and the thickness is 0.53". Our grooved 5VX v-belts are manufactured with rough sidewalls to eliminate slip, improve efficiency and save operating costs. They are also manufactured according to ARPM standards and are oil and heat resistant. The 5VX conveyor belt is composed of high-quality neoprene compound and high-strength polyester string, and the top fabric is made of cotton polyester blend. In addition to performance, durability and energy saving advantages, our toothed v-belts will be used in conjunction with existing vertical v-belt pulleys/pulleys.

(4) 5VX belt toothed V-belt All our v-belts are manufactured according to ARPM specifications, with excellent performance and durability. Because of its design, the belt 5VX toothed v-belt runs more smoothly and more relaxed, and is generally more durable than the standard belt C v-belt. They also provide higher efficiency than ordinary v-belts, which means less energy costs. We can also stock pulleys/pulleys for 5VX belt. For more information or a quote, please contact us and we are happy to help you.

5V-Section Sheaves for V-Belts

The split taper bushing is one of the most typical bushings with high overall strength and simple installation and unloading. Large holding energy, effectively connecting the shaft to the open tapered bushing of the drive unit or idler gear section. Use the most standard casing, because it has considerable overall power, simplicity and unloading. Maintain high energy in order to successfully connect the shaft to the drive or idler gear components. Open tapered bushes are used in various pulleys, conveyor pulleys, and sprockets. We have G series to W2 series split taper bushings with hole diameters of inches and metric, ranging from 0.375 inches to 7.438 inches.

Common Application of Open Tapered Pulley *Machine tool *Crusher, pulverizer, crusher, classifier, vibrating screen *Material conveying system *Fans, blowers and exhausters *Pumps and compressors *Woodworking saw, milling machine, planer, lathe

We also provides belts matching pulleys:https://planetary-gearboxes.en.alibaba.com/productgrouplist-825651128/Belt.html?spm=a2700.shop_pl.98.11

Technological Processing

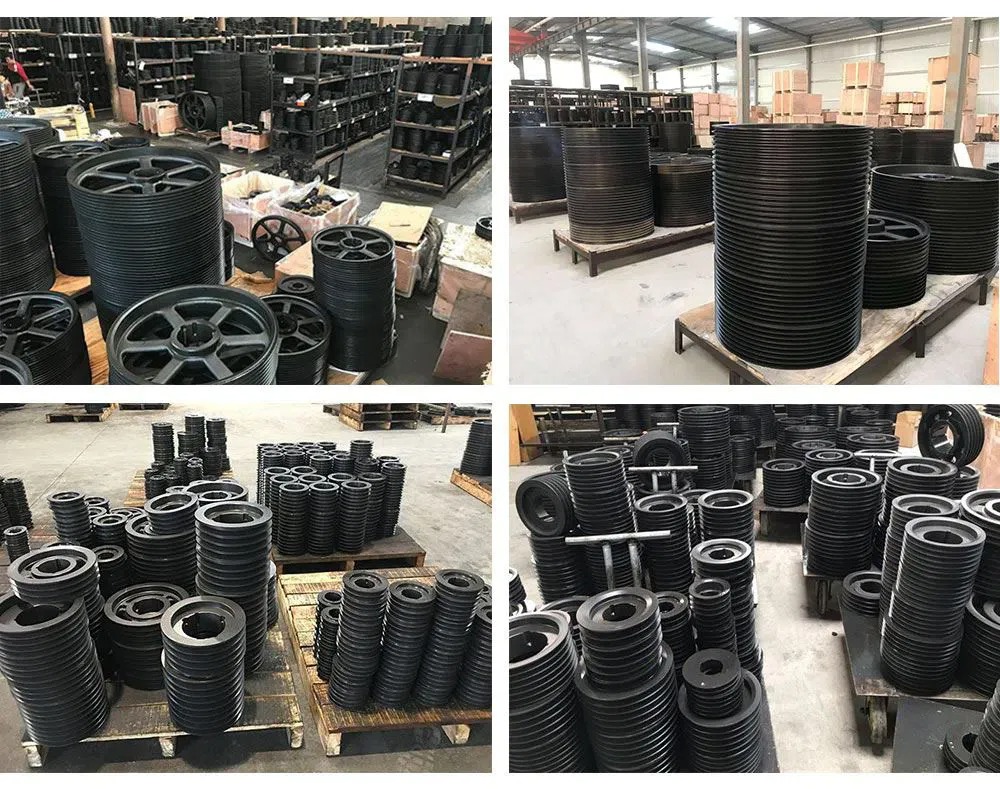

Warehouse inventory The warehouse covers an area of 5000 square meters, and can provide various standard models of A/B/C/Z, with complete quantities and large inventory. At the same time, it accepts various non-standard customized drawings. The daily output is 10 tons and the delivery time is short.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
