Transmission Taper Lock V-Belt Step Pulley with Taper Bushes

Taper bushed pulley,taper lock pulleys / taper bore pulleyv pulley, v belt pulley, v groove pulley, v groove belt pulley, taper lock pulley, taper lock v belt pulley, taper lock bushing pulley, taper lock pulleys / taper bore pulley, large v belt pulley, double v belt pulley, cast iron v belt pulley......Keywords:Transmission Taper Lock V-belt Step Pulley With Taper Bushes - Buy V-belt Pulleys For Taper Bushes taper Lock Pulley pilot Bore Pulley Product on CMN Industry Inc

Send Inquiry

Product Description

Taper bushed pulley,taper lock pulleys / taper bore pulley

v pulley, v belt pulley, v groove pulley, v groove belt pulley, taper lock pulley, taper lock v belt pulley, taper lock bushing pulley, taper lock pulleys / taper bore pulley, large v belt pulley, double v belt pulley, cast iron v belt pulley belt pulley, variable speed v belt pulleys, v belt pulley split pulley, cast iron v belt pulley V belt

pulley specifications:
1) European standard:

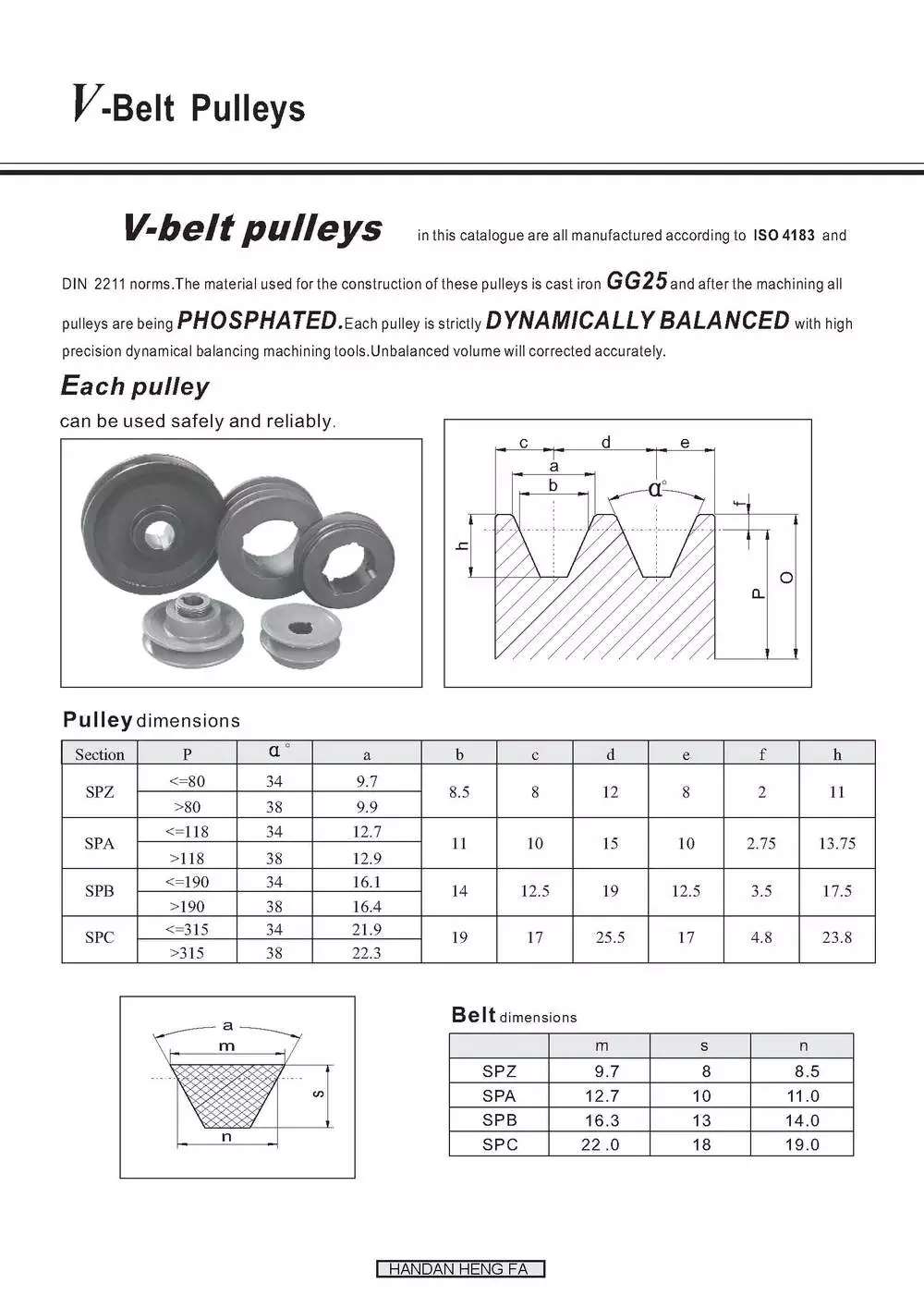

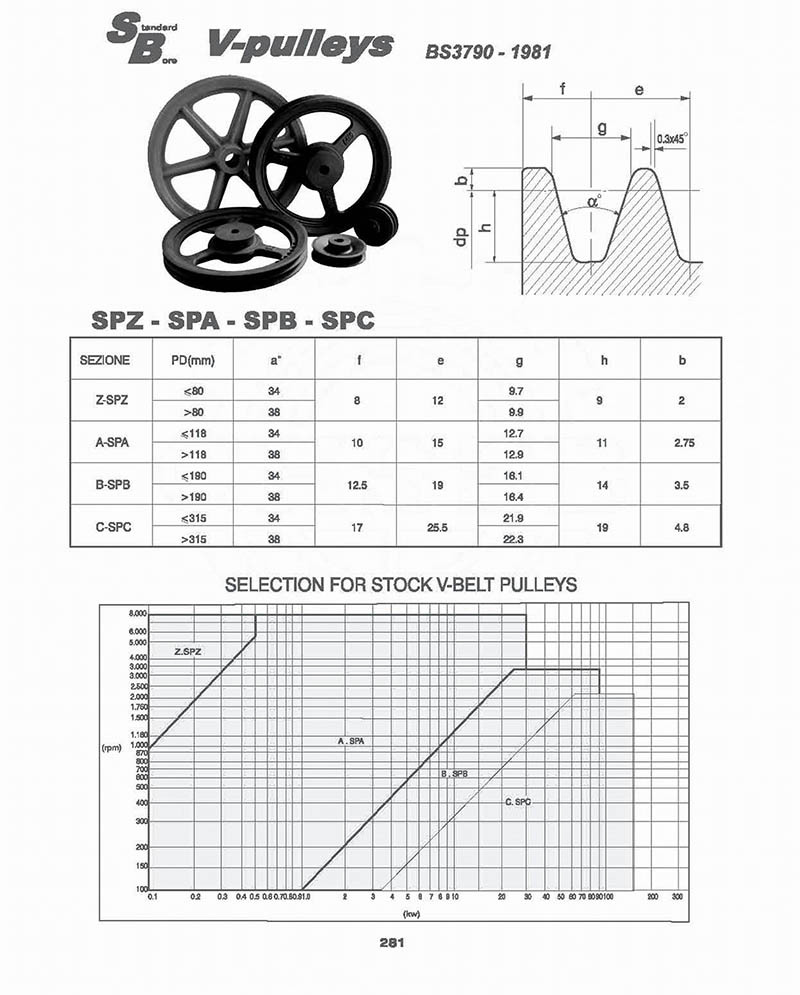

a) V-belt pulleys for taper bushings: SPZ, SPA, SPB, SPC; up to 10 grooves
b) Adjustable speed V-belt pulleys and variable speed pulleys
c) Flat belt pulleys and conveyor belt pulleys
2) American standard:
a) Sheaves for taper bushings: 3V, 5V, 8V
b) Sheaves for QD bushings: 3V, 5V, 8V
c) Sheaves for split taper bushings: 3V, 5V, 8V
d) Sheaves for 3L, 4L or A, and 5L or B belts: AK, AKH, 2AK, 2AKH, BK, BKH,2BK, 2BKH, 3BK
e) Adjustable sheaves: poly V-pulley, multi-pitch H, L, J, K and M
3) Bore: pilot bore, finished bore, taper bore, bore for QD bushing
4) Surface finish: paint, phosphating, zinc plated
5) Material: cast iron, ductile iron, nylon, aluminum
6) Made according to drawings and/or samples, OEM inquiries welcomed

Certification	CE, ISO
Pulley Sizes	SPA Spb Spc Spz
Manufacturing Process	Casting
Material	Iron
Surface Treatment	Phosphating
Application	Chemical Industry, Mining Transport, Power Plant

For more models, please contact us！

Q: Are you trading company or manufacturer ?A: Our group consists in 3 factories and 2 abroad sales corporations.Q: Do you provide samples ? is it free or extra ?A: Yes, we could offer the sample for free charge but do not pay the cost of freight.Q: How long is your delivery time ? What is your terms of payment ?A: Generally it is 40-45 days. The time may vary depending on the product and thelevel of customization. For standard products, the payment is: 30% T/T in advance,balance before shippment.Q: What is the exact MOQ or price for your product ?A: As an OEM company, we can provide and adapt our products to a wide range ofneeds.Thus, MOQ and price may greatly vary with size, material and further specifi-cations; For instance, costly products or standard products will usually have a lowerMOQ. Please contact us with all relevant details to get the most accurate quotation.If you have another question, please feel free to contact us.
