Product Description

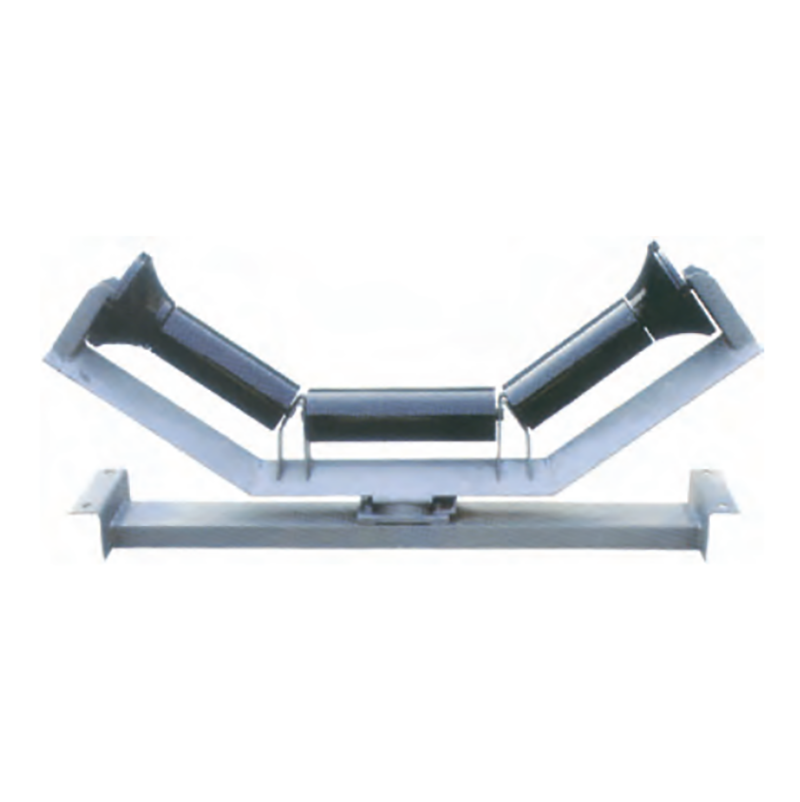

Key Features Impact self-aligning rollers, also known as impact training rollers or impact belt aligning rollers, are a specially designed conveyor roller designed to handle the unique challenges of the loading area of conveyor belt systems. It combines the functions of an impact roller (absorbing the impact of falling material) and a self-aligning roller (automatically correcting belt deviation). Its main function is to support the belt that is subjected to the impact of the loaded material, protect the belt from damage, and guide it back to center if the belt begins to deviate.

Rubber rings or rubber discs: The rollers are equipped with heavy-duty rubber rings or rubber discs along their entire length. These elastic rings can absorb the energy of falling material and protect the belt cover and belt frame from impact damage. Pivot frame: The entire roller frame is mounted on a central pivot mechanism (usually a swivel bearing or pivot pin). This allows the roller to rotate horizontally to handle belt deviation. Drive arm/guide roller: Most designs include vertical guide rollers or drive arms located at the edge of the belt. When the belt deflects sideways and comes into contact with one of the drive arms, the force causes the idler frame to pivot, returning the belt to center. Rugged Construction: Designed for extreme conditions, they feature heavy-duty steel frames, shafts, and sealed (usually lubricated for life) bearings. This construction ensures durability against impact forces, abrasive materials, and environmental contaminants such as dust and moisture. Designed for Easy Maintenance: Despite their ruggedness, they are designed so that it is relatively easy to replace idlers or entire units when necessary.

Performance Benefits

Dual protection (shock and alignment): They simultaneously protect the conveyor belt from damage caused by heavy falling material and prevent premature wear and edge damage caused by misalignment. This dual function is highly effective.

Reduced belt damage, longer service life: By absorbing impact forces, they protect the belt carcass from scoring, tearing, and strength degradation. By aligning, they prevent wear and edge wear caused by the belt rubbing against the conveyor structure, significantly extending the life of the conveyor belt.

Automatic belt alignment in high-stress areas: Loading areas are particularly susceptible to belt misalignment due to uneven loading, material buildup, and the dynamic nature of material handling. Automatic alignment in this critical area is essential because manual adjustments are difficult and dangerous here.

Improved material control: Even when impacted, a well-aligned belt is less likely to spill material out the side, resulting in less waste, cleaner operations, and lower cleanup costs.

Improved system efficiency and uptime: By preventing costly belt damage, reducing spillage, and eliminating the need for frequent manual adjustments, these rollers significantly improve overall conveyor system efficiency and maximize uptime.

Improved safety: Preventing belt damage and material spillage reduces potential hazards for personnel working near the conveyor, improving workplace safety.

Reduced maintenance costs: The combined benefits of extended belt life and automatic alignment translate directly into lower maintenance labor and material costs.

Applications Mining and Quarrying: Critical for conveying abrasive bulk materials such as coal, ore, gravel and sand, heavy loads and harsh conditions often cause belt mistracking in these applications.

Aggregate and Cement Plants: Ensure continuous and efficient transportation of raw materials and finished products. Power Plants: Ensure reliable fuel delivery on long, high-capacity conveyors in coal handling systems.

Steel Mills: Conveying hot or heavy materials, belt stability and life are critical.

Ports and Terminals: Manage large volumes of material in bulk material handling facilities.

Large Agricultural Operations: Long runs and continuous operation are common in grain conveying systems or other bulk agricultural conveyors.

General Heavy Industrial Conveyors: Any application involving long conveyor runs, high speeds or heavy loads requires reliable belt tracking on the return side to prevent operational issues.
