Product Description

What is a Universal Belt Conveyor?

A universal belt conveyor is a versatile, modular conveyor system that uses a continuous belt loop to transport bulk materials. It is supported by pulleys (drive and idler), rollers, and a robust frame, with tensioning systems to maintain belt alignment and performance.

Purpose and scope of use

DJ, DJII transport bulk materials at large angles, and can transport various bulk materials with a loose density of 500-2500kg/m3. suitable for working in temperatures ranging from -25°C to 40°C. If corresponding protective measures are taken.

DJ and DJII large-angle edge conveyors can continuously transport bulk materials at large angles, and can transport various bulk materials with a loose density of 500-2500kg/m³. They are widely used in various industries such as metallurgy, mining, coal, building materials, chemical industry, light industry, ports, grain, ships, etc. This conveyor is suitable for working in temperatures ranging from -25°C to 40°C. If corresponding protective measures are taken, it can also be used in various conditions such as explosion-proof, waterproof, anti-corrosion, flame retardant, high temperature, and severe cold.

Product feature

1. The conveyor has a large conveying capacity, low energy consumption 2. Simple structure, convenient maintenance, and long belt operation life 3. Can be divided into: 500, 650, 800, 1000, 1200, 1400, 1600

4. Can be divided into: 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.15

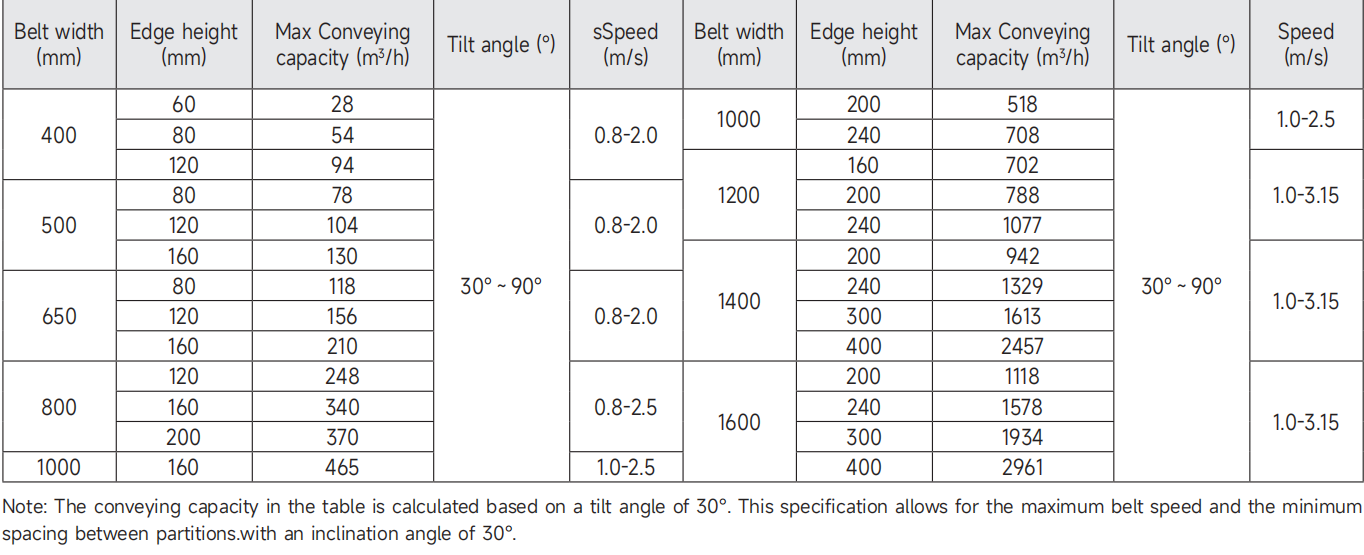

Technical parameters

Applications in the Mining Industry Mining
In mining, DJ and DJII high angle edge conveyors are vital for moving materials like coal, copper ore, and aggregates from deep pits to processing plants or stockpiles. They excel in in-pit crushing and conveying (IPCC) systems, lifting materials at angles up to 90 degrees, which reduces the need for costly truck haulage. For example, they can handle up to 2,000 tons per hour of ore,enhancing operational efficiency in open-pit and underground mines (Continental Conveyor).

Construction: Transport sand, gravel, and aggregates in space-constrained sites, supporting vertical material movement.

Power Generation: Move coal to boilers in power plants, ensuring a steady fuel supply.

Agriculture: Convey grains in storage facilities, minimizing material damage.

Chemical Industry: Handle chemical materials with corrosion-resistant designs.

Ports and Terminals: Facilitate loading/unloading of bulk cargo like ores and coal.

For more details, please click here to contact us!

Ever-power Group Co., Ltd. manufacturing of transmission and transportation machinery for more than 20 years, The company has a modern factory building area of over 18000 square meters. The company mainly engages in the design and manufacturing of various transmission machinery products. The products cover DT II (A), DT II, TD75, DJ high-angle belt conveyors, circular tube belt conveyors and various conveyor accessories

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
