Product Description

Model :	Energy Saving Series (PM)
Type:	Oil Injected Permanent Magnetic Screw Compressor
Voltage:	380V/50HZ/3P, 220V/60HZ/3P, 400V/50HZ/3P, 415V/50HZ/3P or Customer′s Requirements
Working Pressure:	7~13bar
Installed Motor Power:	20~75 Kw
Color:	Blue
Driven Method:	Taper Connection Direct Driven
Air End:	Original Ally-win Air End from Germany.
Trademark:	EPT
Transport Package:	Standard Wooden Packing
Available Certificate:	CE, ISO, UL, ASME, GHOST
Origin:	Shanghai, China
application:	Packing,Painting,Precision Electroplating,Peparing

Model	Pressure	Capacity	Power	Horse Power (HP)	LHW	Weight	Size
Model	Pressure			(m3/min)	(KW)	HP	Size	(mm)	(kg)
EPT30PM	7/8/10	3.7/3.6/3.2	22	30	12008001100	450	Rc1
EPT40PM	7/8/10	5.2/5.0/4.2	30	40	12008001100	510	Rc1
EPT50PM	7/8/10	6.4/6.3/5.6	37	50	13009001270	680	Rc1 1/2
EPT60PM	7/8/10	7.3/7.2/7.1	45	60	13009501370	730	Rc1 1/2
EPT75PM	7/8/10	10.2/10.1/8.4	55	75	180012001550	1230	Rc2
EPT100PM	7/8/10	13.3/12.9/11.8	75	100	180012001550	1280	Rc2

Advantages:
1. China-Japan latest technology cooperation, high reliability.
2. Oil Cooling Permanent Magnetic Motor.
3. IP65 protection grade & heavy duty air filter, suitable for high dusty environment.
4. IE4 Efficiency motor efficiency.
5. Most energy saving mode, Only work at loading.
6. Wide frequency range 25%-100%.
7. Premium Magnetic material resist more than 180℃ temp.
8. Reliable PM motor supplier from Italy.
9. Direct Taper connection, no transmission power loss, easy maintenance.
10.Touch Screen PLC with preset running schedule, more intelligent control.
11. Both main motor and fan motor are inverter control, more accurate control.
12. Easy for installation and service.
13. Fantastic Energy Saving, save up to more than 30-40%.

Oil cooling PM motor

The motor widing take use of new technology vacuum expoxy potting process, it increase the thermal conductivity and motor insulation protection

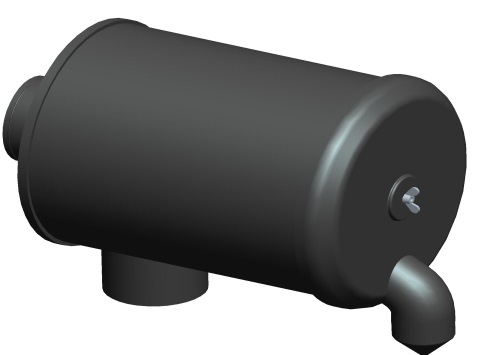

EPT heavy duty air filter

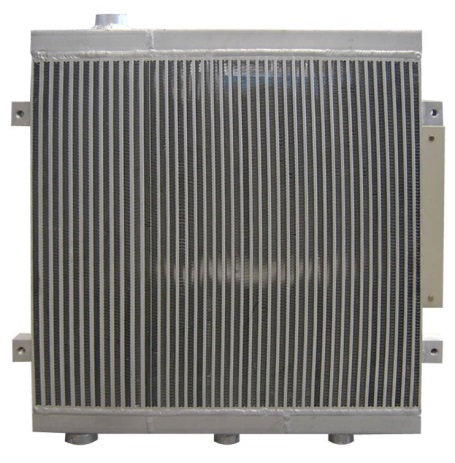

OVERSIZE COOLER

Oversize cooler to make sure the compressor run max up to 46 degrees without any problem.

LATEST TOUCH EPTEEN PLC

* 7” Inch touch screen display. * Full feature protection. * Multi intelligent control, like running schedule. * Support Modbus RTU. * Remote monitoring is option.

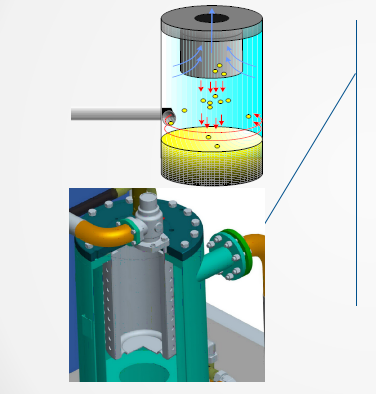

HIGH EFFICIENCY SEPARATION SYSTEM

Cyclone oil tank design ensure the high separation efficiency. First stage is mechanical centrifugal separation. Second stage is high efficiency oil separator. 4000 hours life-span of oil separator. The oil content is lower than 3PPM.

LATEST V/F Inverter

* Latest V/F technology inverter. * CE/UL certificed inverter. * Both motor are inverter control. * High reliable inverter brand proofed in the market. * Professional service support. * Adjust airend speed to match your air demand automatically , help good energy saving.

Model			EPT100PM-7	EPT100PM-8	EPT100PM-10
Capacity/Pressure(m3/min,/BAR)			13.3/7	12.9/8	11.8/10
PM Motor	Power(KW)	75KW(100H.P)
		Speed(r/min)	3000
		Starting way	VSD Startup
		Volt(V)	380/400/415(220)
		Motor safety grade	IP65
		Motor isolation grade	F
Electrical Supply			380(400,415)V/50Hz/3Phase, 220V/60HZ/3P
Outlet Temperature(ºC)			≤ ambient Temperature+10ºC
Driven way			Direct Driven
Noise level at 1 meter			76±3dB(A)
Cooling method			Oil cooling
Oil content			1~3 ppm
Outlet Connection			Rc 2
Dimension	Length(mm)	1800
		Width(mm)	1200
		Height(mm)	1550
Weight(KG)			1280

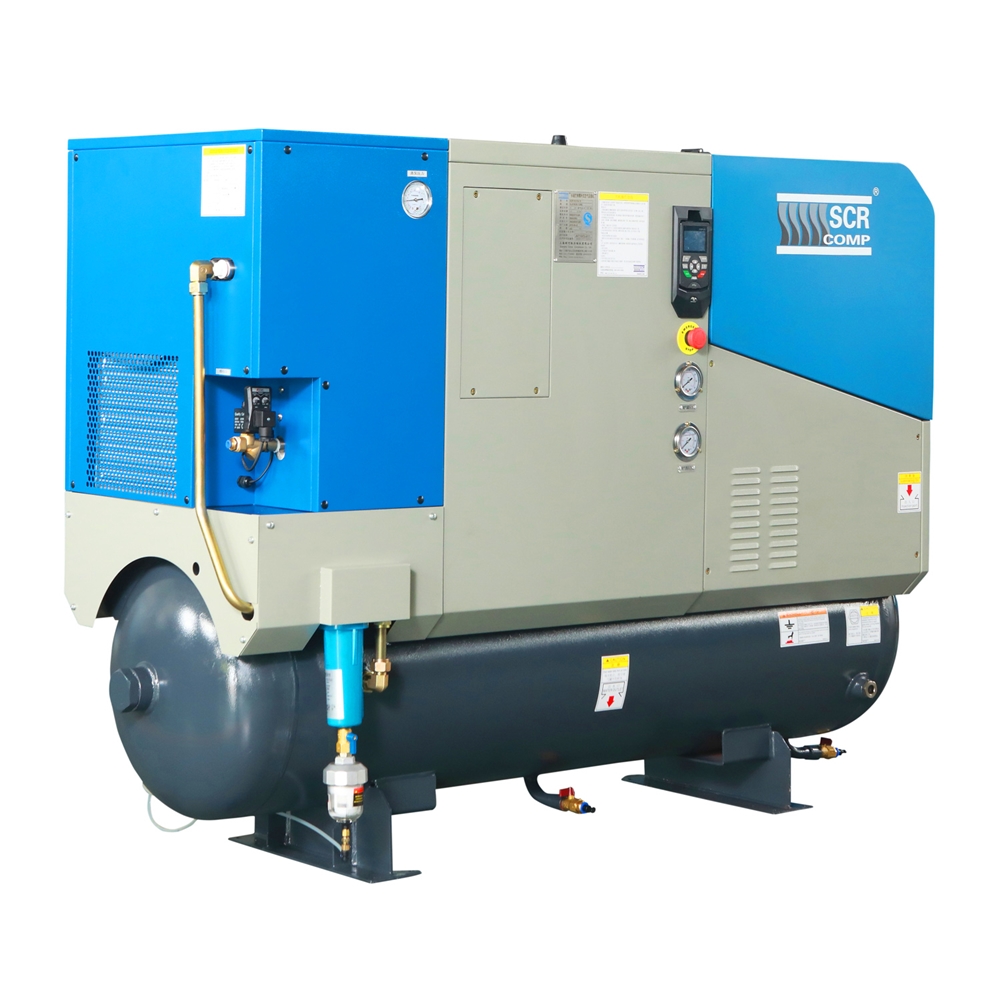

Integrated Screw air compressors with air dryer and C,T,A air filter(EPT10-EPT20CPM)

30% energy saving EPM series air compressor(EPT100EPM2-150EPM2)

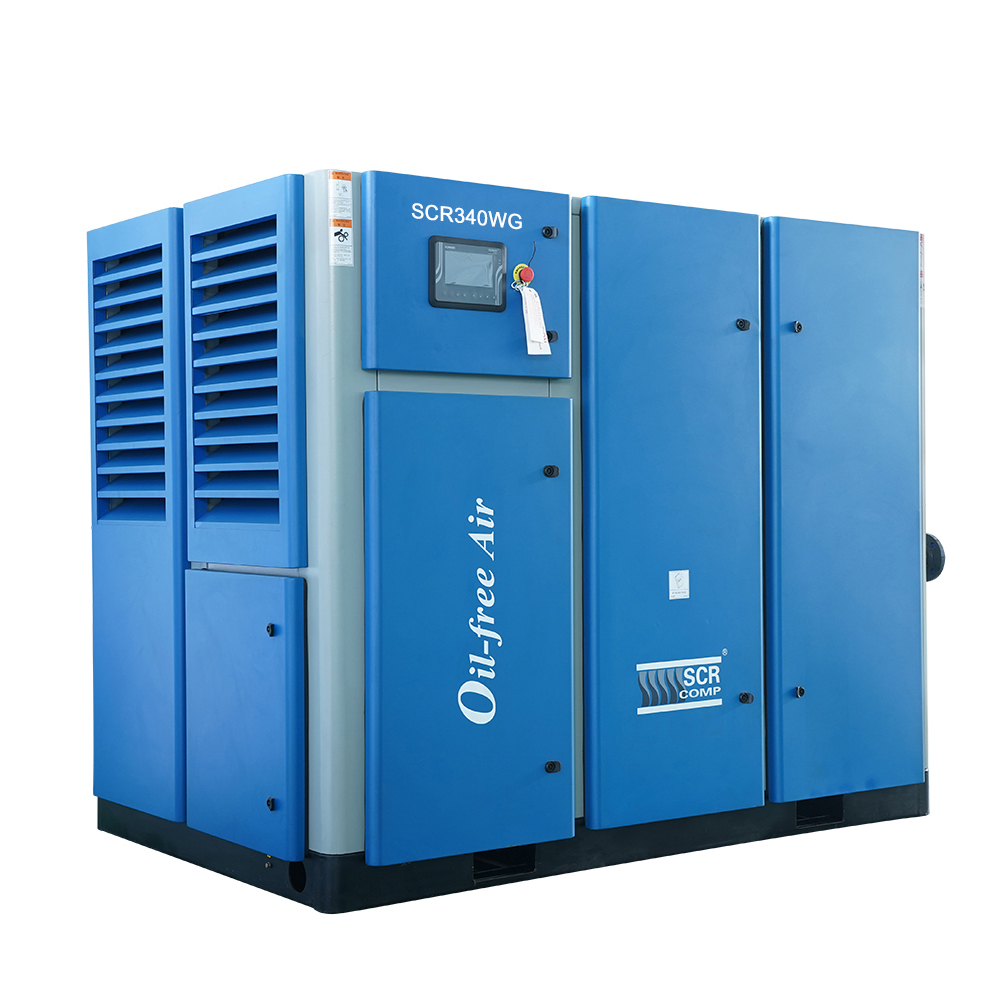

100% Oil Free Screw Air CompressorGHH-RAND AirendClass 0 standard 1:2:1

Oil free scroll compressor(EPT5-60XA)Original Anest Iwata Airend

High efficiency Two stage air compressor with TEFC motor and SKF bearings(EPT125H-400H)

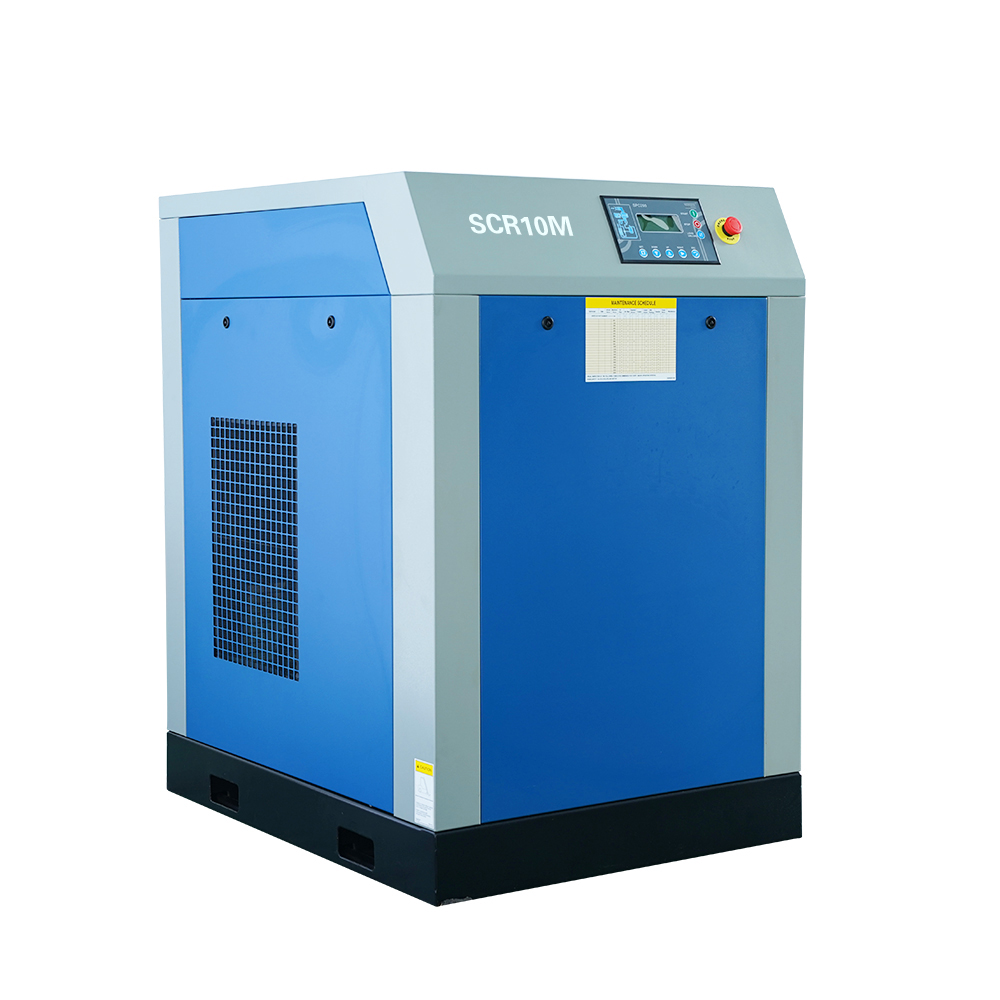

Classic Belt driven air compressor(EPT7.5M-100M)

1 What trade terms do we provide? What kind of settlement currency do we offer?
Trade term :CIF ,CFR ,FOB,Ex-Works As far Our business traded in Dollars ,Euros and RMB .

2 How long is our delivery?
Our standard delivery time is 30-40 days after confirmation order & receiving recipets for standard compressors, for the other non standard requirement will be discussed case by case.

3 What is the voltage of the compressor?
The available voltage include 380V/50HZ/3Phase, 400V/50HZ/3P, 415V/50HZ/3P, 220V/60HZ/3P, 380V/60HZ/3P, 440V/60HZ/3P. At the same time we provide other voltage according to customer requirement.

4 Can our compressor run in high temperature environment? What is the working temperature range for our machine?
Yes ,our machine would run in high temperature environment ,until now our products have been sold to many countries which wouldmeet high temperature in summer ,such like Iraq, Saudi Arabia, Egypt, Algeria, etc. Work temperature range :1-45 ℃(33.8℉-113℉)

5 What’s the min. Order requirement ?
Min. Order requirement is 1PCS.
