Multifunctional Agricultural Lawn Mower Gearbox for Wholesales

#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:452.7027027027027px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:452.7027027027027px}#detail_decorate......Keywords:Multifunctional Agricultural Lawn Mower Gearbox For Wholesales - Buy Agricultural,Lawn Mower Gearbox,Gearbox Product on CMN Industry Inc

Send Inquiry

Product Description

Characteristic

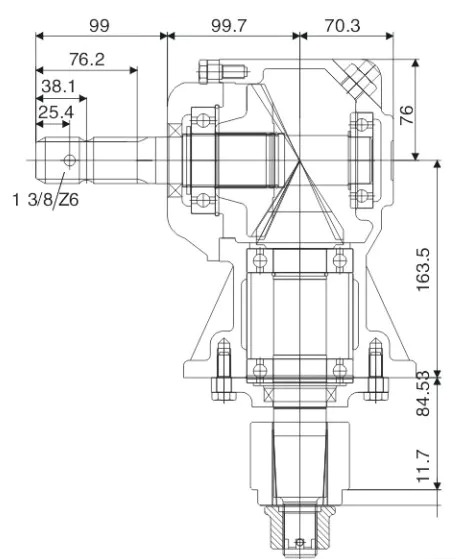

Replacement OMNI GEAR series RC-31 right angle rotary cutter gearbox. Horizontal input and vertical output downward. Bevel gears.Large deep groove ball bearings to support output. Four 5/16″-18 tapped holes on 4-1/8″ dia. B.C. For ships without oil, the user must add oil prior to use per the user‘s manual.

ITEM	EP-RC31-193	EP-RC31-147
Ratio	1:1.93	1:1.47
Teeth	15/29	15/22
Module	4.0	5.08
Power(HP)	30	40
Rated Input	540rpm	540rpm
Input/Output Description	1-3/8 Z6 Cone base aequilate spline shaft
Weight(N.W)	24.5KG	24.5KG

Specifications of Lawn Mower Gearbox
* Rotation CCW input gives CW output
* Gear Ratio 1:1.46 Increaser
* Input RPM 540/1000
* Output RPM 788/1460
* Input HP 35-83
* Max Torque 4083-9683 in.lbs.
* Input Shaft 1-3/8" dia. x 3-7/8" long 6T spline W/ 5/16" dia. pinhole
* Output Shaft 2" dia. 15 teeth tapered spline w/threaded end. 4-5/8" total length
* Blade Hub 3.94" dia. x 2.275" stepped down to 2.5" dia. x 0.45" then tapers down to 2.175" dia. over 0.25"
* Mount 4 holes on 8" dia. B.C.
* Pilot 5-5/8" dia.
* Size 12-3/8" x 9-3/4" x 9-3/4"
* Shpg. 89 lbs.

Brand of replaceable gearbox
Also, we have replacement parts for these models
Bush Hog: ATH 600 and ATH 720, ATH 900, FTH 480, FTH 600, FTH 720, MTH 600, MTH 720 Series Mowers;
Landpride: FDR1548, FDR1560, FDR1572, FDR1648, FDR1660, FDR1672, FDR2548, FDR2560, FDR2572, AT2660, AT2672 Series Mowers;
Kubota: BL348A, B342A; Caroni TC480, TC590, TC710, TC910 with spline Input Shaft;
Befco most late models with splined input shafts, early models had some with smooth input shaft;
Curtis all Models; Douglas all Models; Tecma all Models;
Sovema all Models; Maschio all Models; Phoenix all Models;
Sicma all Models; First Choice all Models

Customized Service of Agricultural Gearbox
Our Gearbox has many items for your choice and we can produce as per your drawing or sample to meet your special request

1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7. OEM according to your request

Usage Scenario of Lawn Mower Gearbox

Other Agricultural Gearboxes

Agricultural Gearbox Production Workshop
1. CNC Workshop: a series of high precision CNC, including Japanese Okuma CNC and other vertical and horizontal CNC.
2. Gear Hobbing Workshop: High-Speed 5-axis linkage digital-controlling gear hobbing machines, and the precision reaches GB grade 6.
3.Gear Teeth Inserting Workshop:KS5150,YKS5132,YKS5120A,YSL5120
4. Gear Teeth shaving cutters grinding machine: Italian S400 GS gear teeth shaving cutters grinding machine

We are a gearbox manufacturer specializing in gearboxes for agricultural machinery
Our aim is to provide tailor-made solutions for the market and customers, whether it is a single product or a complete set of equipment.
Markets, applications, and customers are different, but Hongye has a unique philosophy to guide the latter to success.
For any questions or feedback from customers, we will respond patiently and meticulously in a timely manner.
We will promptly reply to any inquiries from customers with the most professional and reasonable price.
For any new product of customers, we will communicate with customers professionally, listen to their opinions, and provide useful suggestions for developing the best products. For any order from customers, we will complete it with the fastest speed and the best quality.
We take the time to address each issue, no matter how mundane it may seem to you. We will always serve you. You will find that we speak your language and understand your technical issues. That's why we have been able to successfully work with clients from nearly 30 countries over the years.
The company takes quality as its life, and has established the strategic goal of "high standards, high precision, and zero
defects". Based on the work style of "integrity and pragmatism, perseverance, teamwork, and achievement of excellence", we sincerely invite prospective customers from all over the world to visit and create a better future. future.

Click here for more details!

Please click on the photos below to visit their websites.

Q:What is the strength of your company?
A:We have a engineer team,who have well experienced on products and machine designs.We can help you to solve the problem you meet.

Q:How about you quality?
A:We have our own prcoessional factory and worker,so believe that our products have advange over our competitors.

Q:What is you MOQ?
A:Minimum order quality is 1 piece.

Q:Could you produce customized product according to your drawing or sample?
A:Yes.We have abundant experience in the production of non-standard products.

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.
