Product Description

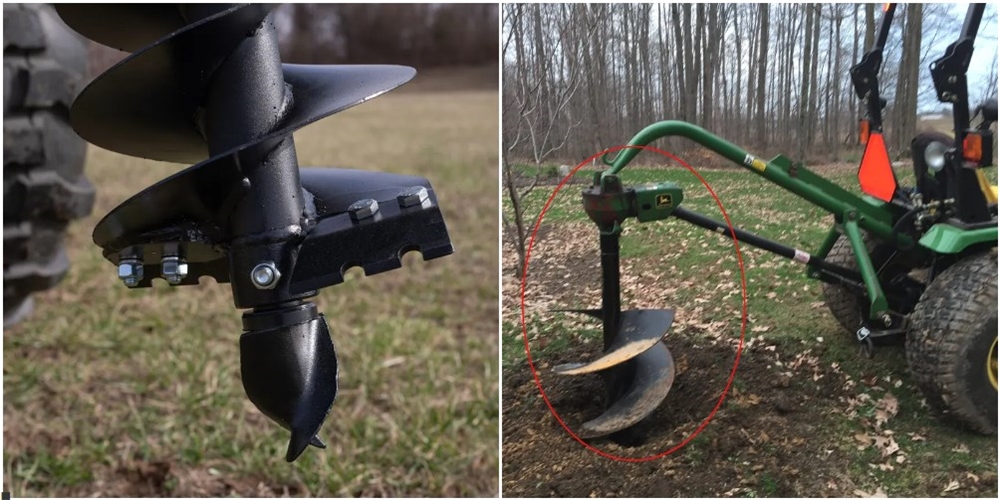

The 24-inch column hole auger is a tool used to dig holes with a diameter of 24 inches on the ground. It is usually used to install fence posts, deck posts and other types of posts or props. The auger consists of a long metal shaft with a spiral blade at one end and is designed to penetrate the soil, making it easier to dig deep holes. The auger operator usually uses a crank or motor to rotate the blade to form a hole on the ground. The 24-inch rear hole auger has a larger size and is suitable for larger operations requiring wider holes. Specification of 24-inch column hole auger 24 inch diameter Replaceable heavy cutting edge Guide end heavy bolt 4 feet long 2 "round drive (used with two 1/2" shearbolts, not included)

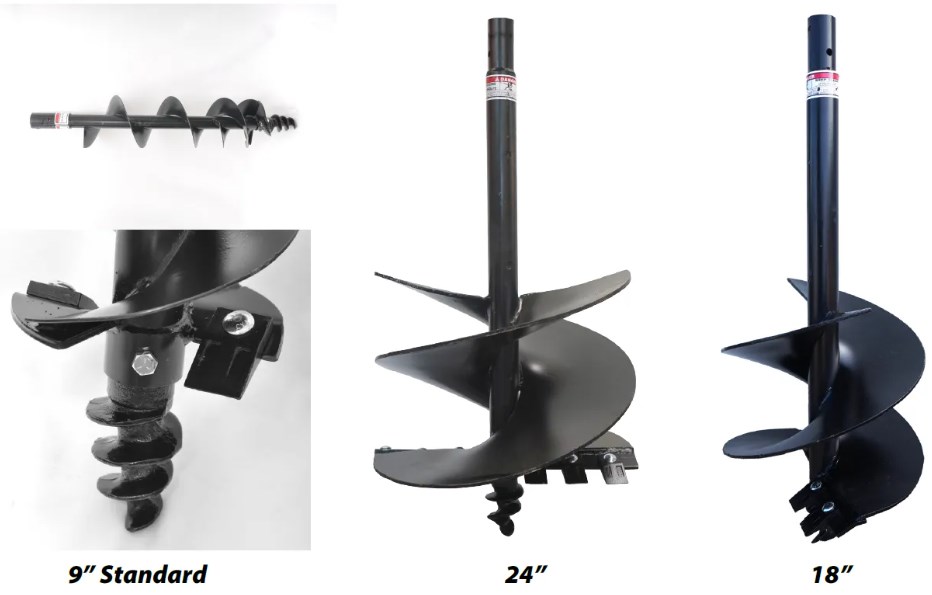

Auger Diameter	Duty & Length	Weight	SKU
6"	Compact - 36"	21	23-033
9"	Compact - 36"	32	23-035
12"	Compact - 36"	43	23-037

6"	Standard - 48"	23	23-032
9"	Standard - 48"	34	23-034
12"	Standard - 48"	49	23-036

6"	Heavy - 48"	31	23-040
9"	Heavy - 48"	42	23-041
12"	Heavy - 48"	60	23-042
18"	Heavy - 48"	99	23-043
24"	Heavy - 48"	125	23-044

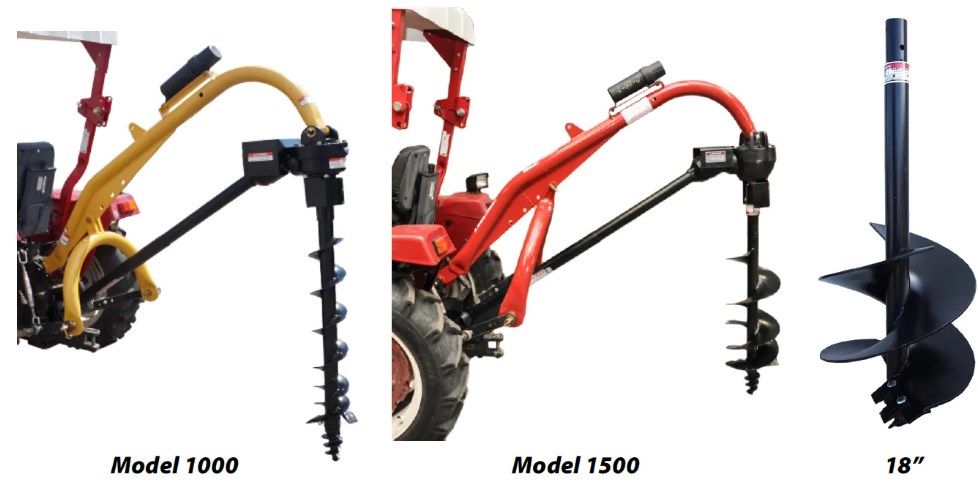

Post Hole Auger for 3 Point Post Hole Diggers

Model	Model 400 Compact	Model 650 Standard Duty	Model 1000 Heavy Duty	Model 1500 Extra Heavy Duty
SKU	24-0361	24-0362	24-0318	24-0337
Category	0 & 1	1	1	1 & 2
Boom Length	56"	60"	72"	72"
Tubing Diameter	2-7/8"	2-7/8"	2-7/8"	3-1/4"
Draw Pin Width	20"	27"	27"	32-1/2"
Drive ine	Series 1	Series 1	Series 4	Series 4
Gearbox	2.9:1	2.9:1	2.9:1	3.18:1
Auger Diameters	6", 9", 12" (3' ength)	6", 9", 12"	6", 9", 12", 18", 24"	6", 9", 12", 18", 24"
Weight	150 bs	160 bs	200 bs	235 bs
SKU	24-0361	24-0362	24-0318	24-0337
Features	4 Positions	3 Positions	4 Positions	4 Positions

Characteristics of 24-inch heavy-duty post-hole auger

The 24-inch heavy cylindrical auger usually has the following characteristics: (1) Heavy-duty structure: This type of post-drilling auger is designed to withstand extensive use and abuse. It is constructed of high-quality materials such as steel, usually with powder coating to prevent rust and corrosion. (2) Large diameter: As the name implies, the diameter of a 24-inch backhole auger is large. This enables it to dig large and deep holes quickly and efficiently. (3) Double blade: Most heavy back hole augers have double blades, which can easily cut soil, clay and other materials. The blade is usually made of high-quality wear-resistant steel alloy. (4) Hexagonal drive: The 24-inch rear hole auger bit usually has a hexagonal drive shaft, which can be connected to various types of electric drill or auger drivers. (5) Adjustable depth: Many post-drilling augers provide adjustable depth settings, allowing users to select the depth they want to dig. (6) Easy to use: Although the structure is very heavy, the 24-inch column hole auger is usually easy to use. The blade is sharp and can easily penetrate the soil. Many augers are designed to be operated by one person. In general, the 24-inch heavy-duty pile hole auger is a necessary tool for anyone who needs to dig deep and large holes quickly and efficiently.

Procedure for use of 24-inch heavy-duty column hole auger The use of a 24-inch heavy-duty drilling auger may be daunting at first, but it may be a simple process if the correct technology and safety measures are adopted. Here are some steps to follow: 1. Safety precautions: ensure to wear appropriate safety equipment, such as strong work boots, safety glasses and gloves. When using the drill string, do not let anyone stand near the drill string. Make sure that the area is clear of any obstacles that may interfere with the auger operation. 2. Set the auger: connect the column hole auger to the electric drill or other power supply according to the manufacturer's instructions. Place the auger where the hole is to be dug. 3. Start the auger: start the electric tool and slowly send the auger bit into the soil after the hole. Make sure to hold the tool firmly to avoid injury. 4. Hole digging: continue to drill down, move the drill and screw it to form a round hole. When the drilling reaches the required depth, slowly remove the auger from the soil. 5. Debris removal: once you remove the pile hole auger from the soil, remove the debris from the hole and put the pile into the hole. 5. Repeat: Repeat the process for any other hole to be excavated. The use of the auger after heavy drilling can greatly speed up the progress of the project, but the safety precautions and the manufacturer's instructions must be followed to maintain a safe and efficient completion of the work. 24 inch heavy duty post-drilling auger The 24-inch heavy-duty backhole auger is mainly used to excavate deep and wide holes for various construction and agricultural purposes. Here are some common applications of the tool: Fence: 24-inch post hole auger is used to dig deep and wide holes to install fence posts. Agriculture: 24-inch backhole auger is used for planting trees, shrubs and crops in large areas. Signs: 24-inch pile hole augers are usually used to drill holes on highway and road sign piles. Structure: 24-inch column hole auger is used for building foundation, pier and footing. Landscaping: 24-inch backhole auger is used to drill holes for retaining wall, bridge deck and outdoor living space. Soil sampling: the auger after 24-inch drilling is used to collect soil core samples for testing and analysis. Mining: 24-inch post-drilling auger is used for mining exploration purposes, and minerals are extracted by drilling in the soil. In general, the 24-inch heavy-duty pile hole auger is the basic tool for any construction or agricultural project, which requires fast and efficient excavation of deep and wide holes.

We also provide PTO shaft for the auger of the rear hole digger

The PTO shaft of the auger of the rear hole excavator is a power output shaft, which connects the tractor's power output to the auger of the rear hole excavator. The PTO shaft is responsible for transferring power from the tractor engine to the drill auger after drilling, so that it can drill holes on the ground. It is a key component of any tractor driven post-drilling and excavation equipment. When purchasing the PTO shaft for the rear hole excavator auger, consider the length, size and horsepower rating of the tractor and auger to ensure that the shaft is compatible with your equipment. It is very important to properly maintain and lubricate the PTO shaft to ensure its service life and efficient operation.

Auger bit maintenance after drilling Proper maintenance of the auger after drilling is the key to ensure its long-term use and maintenance of useful tools. Here are some tips to help you maintain the auger after drilling. Regular cleaning: After each use, clean the auger bit after drilling. Remove all dirt, debris and mud from the auger bit and the tool itself. Avoid using cleaners or solvents that may damage machine parts. Check and replace the peeled or damaged parts: check the machine components to find the damaged or peeled parts that may need to be replaced. The components of the machine may include gearbox, engine, blades and other components. Lubrication: proper lubrication of the auger bit after the hole is essential to maintain its good condition. It helps the parts move smoothly and prevents rust or corrosion. After cleaning and before storage, lubricate the auger. Always follow the manufacturer's recommended lubrication guidelines. Proper storage: When you do not use the rear hole auger, store it in a dry and clean place, away from moisture and sunlight. Cover the machine with waterproof cloth or plastic cover to prevent dust and dirt. Regular maintenance: invite professional technicians to maintain the machine regularly to ensure that all parts work normally. The maintenance plan also helps to identify problems before they become major problems. By following these maintenance tips, you can extend the life of the auger after drilling and ensure that it is ready to handle your excavation task at any time.
