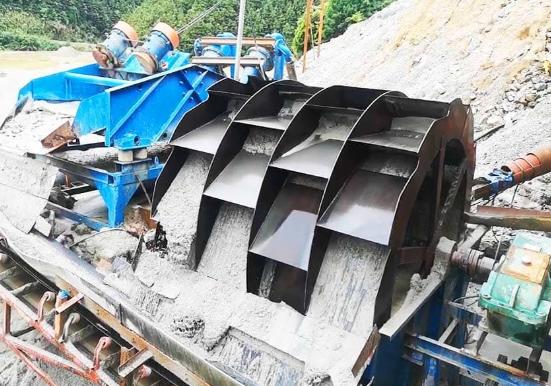

High-Efficiency Bucket Wheel Sand Washing Machine for Mining Aggregate Dewatering Sand Washer Plant for Construction Material

#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:610.27397260274px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:610.27397260274px}#detail_decorate_roo......Keywords:High-efficiency Bucket Wheel Sand Washing Machine For Mining Aggregate Dewatering Sand Washer Plant For Construction Material - Buy Dewatering Wheel Sand Washing Machine Manufacturer For Aggregate Plant Mining Construction Industry River Silica Sand Making Line Gravel Granite Limestone Washer Classifier High Capacity Cleaning Machine Spiral Log Washer Price For Sale Water Saving Stone Crushing Machine Spare Parts Ore Processing Equipment Sandvik Replacement Component Heavy Duty Machinery Product on CMN Industry Inc

Send Inquiry

Product Description

Advantages

High Cleaning Performance: The unique bucket wheel design ensures thorough cleaning and scrubbing, effectively removing clay, dust, and other impurities, resulting in high-purity sand and gravel. Excellent Durability and Low Maintenance: The machine's wear-resistant materials and simple, rugged construction ensure a long service life with minimal downtime, reducing your operating costs. Efficient Water and Sand Management: Its excellent dewatering performance minimizes the moisture content of the final product and is designed to reduce fine sand loss during the washing process, maximizing your production output.

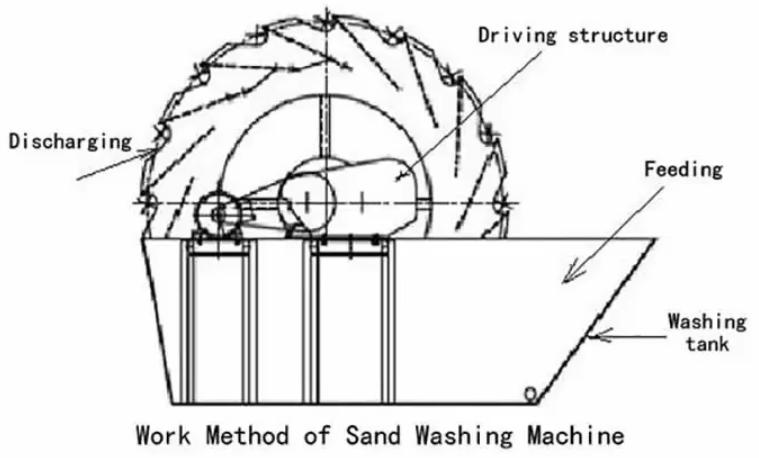

Working Principle:

This equipment operates on a simple, effective principle. An electric motor drives a slowly rotating impeller via a V-belt and a speed reducer. Sand and gravel enter the washing trough from the feed chute, where they are agitated and scrubbed in the rotating hopper. As the hopper rotates, aggregate is removed from the water, while impurities and contaminated water are discharged through the overflow outlet of the discharge weir. Clean sand and gravel are lifted by the hopper and poured into the discharge trough for dewatering, completing the entire cleaning process.

Whole Machine Parameter	Diameter	4800x4000x3800mm
	Power	22kw
	Water Consumption	500m³/H
	Working Capacity	200-300m³/H
Water Wheel	Diameter	3600mm
	Width	2400mm
	Row Line Quantity	4
	Bucket Quantity of each Wheel	18
Sand Bin	Diameter	4800x2800x1800mm
Sand Recovery Bin	Diameter	1200x1200x800mm

Applications he Climbing Movable Scraper Conveyor is a vital piece of material handling equipment primarily used in industries such as mining (especially underground coal and mineral extraction), construction, port terminals, agriculture, and power plants. Its main role is to transport bulk materials—like coal, ore, sand, grain, wood chips, or industrial sludge—horizontally, and more importantly,at a steep incline or vertically. It is the ideal solution for transferring materials from a low point (like an underground hopper) to a higher discharge point (such as a silo, truck, or another conveyor) where standard belt conveyors are not feasible due to space or angle limitations.

For more details, please click here to contact us！

Non-standard Customization Of Industrial Products

Non-standard Customization (Stamping, Bending, Metal Plate, Welding, Steel Structure)

Ever-power Group Co., Ltd. manufacturing of transmission and transportation machinery for more than 20 years, The company has a modern factory building area of over 18000 square meters. The company mainly engages in the design and manufacturing of various transmission machinery products. The products cover DT II (A), DT II, TD75, DJ high-angle belt conveyors, circular tube belt conveyors and various conveyor accessories

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
